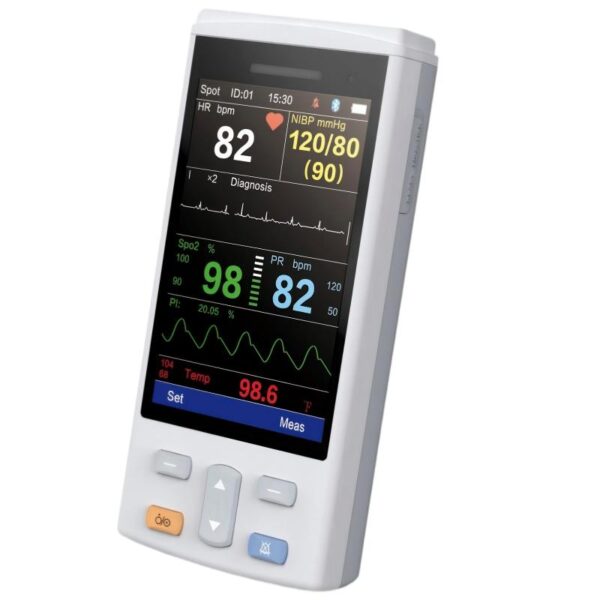

Configurable handheld veterinary pulse oximeter with optional NIBP, temperature, and ETCO2 in a single rechargeable handheld unit.
Product Overview
The IWA-HM10 is a compact handheld veterinary monitor designed for routine spot checks, anesthesia recovery monitoring, and ambulatory case-side use. The base configuration covers SpO2 and pulse rate, with optional NIBP, temperature, and ETCO2 modules selectable per clinic workflow.
Two measurement modes — Spot and Monitoring — let veterinary staff use the same device for quick triage checks or longer continuous monitoring. With a built-in lithium battery providing 8 hours of operation and storage for 100 NIBP measurements, the IWA-HM10 supports a full mobile workflow between exam rooms.
Key Features

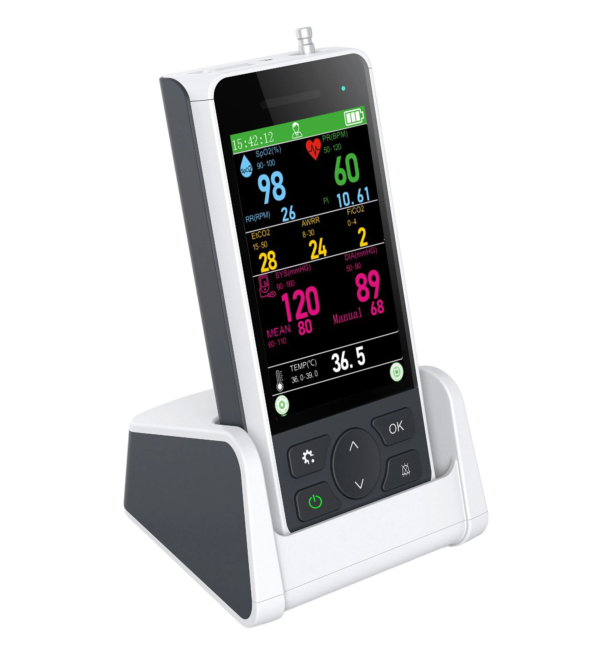

- Compact handheld form factor with optional charging cradle
- 2.5-inch or 3.5-inch color TFT display with high resolution (320 × 480)
- Configurable parameter sets: SpO2 baseline, plus optional NIBP, temperature, and ETCO2
- Two measurement modes: Spot for triage, Monitoring for continuous sessions
- Accurate measurement under low-perfusion index and motion conditions
- Multiple veterinary measurement parameters for collocation flexibility
- Built-in lithium battery — up to 8 hours of operation per charge
- Storage for 100 NIBP measurements; storage of user-defined alarm limits
- Easy operation with dedicated keys plus on-screen prompts
- Audio and visual alarms with user-adjustable upper and lower limits
- Multiple edge-of-screen alarm indicators (red and yellow) for distance visibility

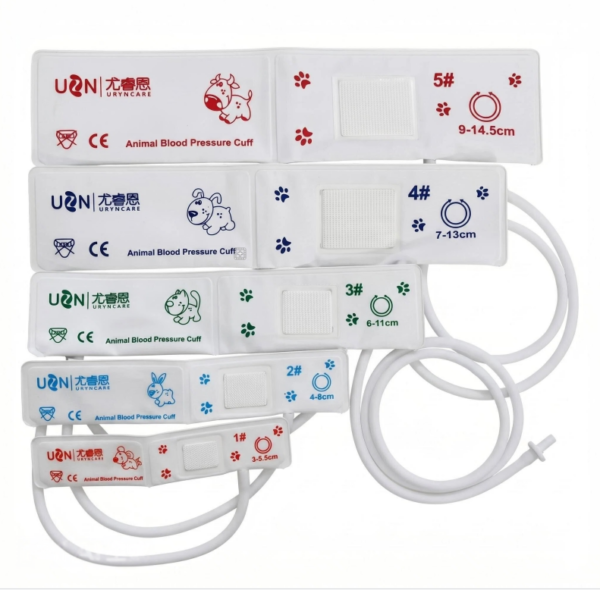

- Veterinary NIBP cuff sets for 5#, 4#, and 3# limb sizes
Technical Specifications
| Display | 2.5-inch or 3.5-inch color TFT, 320 × 480 resolution |
| Base Parameters | SpO2, Pulse Rate (PR) |
| Optional Parameters | NIBP, Temperature, ETCO2 |
| Configurations | SpO2 only / SpO2+NIBP+TEMP / SpO2+ETCO2+PR / SpO2+NIBP+ETCO2+PR |
| SpO2 Range | 0–100%, accuracy ±2% (70–100%) |
| Pulse Rate Range | 20–300 bpm, accuracy ±1 bpm or ±2% |
| NIBP Range | Adult 40–270 mmHg systolic; pediatric/neonate ranges available |
| Temperature | Measurement range 25–45 °C, resolution 0.1 °C, accuracy ±0.1 °C |
| ETCO2 Range (Optional) | 0–80 mmHg, accuracy <5% |
| Measurement Modes | Spot check, Continuous Monitoring |
| Storage | 100 NIBP measurements |
| Alarm | Audible + visual, user-adjustable upper/lower limits |
| Power Source | Built-in rechargeable lithium battery |
| Battery Runtime | Up to 8 hours operation |
| Charge Time | Approximately 4 hours from depleted |
| Operating Temperature | 0 – 40 °C |
| Humidity | 15 – 90% RH non-condensing (operating) |
| Cuff Sizes Included | Veterinary 5# (9–14 cm), 4# (7–9.5 cm), 3# |
| Warranty | 1 year |
Clinical Applications
- Pre-anesthesia spot checks at intake or pre-op exam
- Anesthesia recovery monitoring with continuous SpO2 and pulse
- Triage of critical patients in emergency or referral settings
- Ambulatory house-call and mobile clinic case-side monitoring
- Neonatal pediatric and adult patient monitoring
- Inpatient ward spot-check workflows where full bedside monitors are not needed
Package Contents
- 1 × IWA-HM10 handheld monitor (selected configuration)
- 1 × Charging cradle (optional)
- 1 × Veterinary SpO2 sensor (tongue clip or paw clip)
- 1 × Power adapter for charging
- 1 × User manual
- 1 × Warranty certificate
- Optional (per configuration): NIBP cuff set 5#/4#/3#, temperature probe, ETCO2 sampling kit
Why Choose IWA-HM10 Handheld Veterinary Pulse Oximeter Monitor
- Handheld portability and 8-hour battery cover an entire clinic shift on one charge
- Configurable parameter sets let clinics start with SpO2-only and add NIBP/TEMP/ETCO2 as workflows mature
- Veterinary-rated probes and cuff sets fit small-mammal through medium-breed canine without human-equipment compromise
- Spot mode reduces alarm fatigue during triage; Monitoring mode supports anesthesia recovery
- Cost-effective alternative to full bedside monitors for ambulatory and recovery-area use
Warranty & Support
1-year manufacturer warranty on electronics and chassis. Battery follows standard 6-month consumable terms. Probes and cuffs subject to wear-item conditions.
Frequently Asked Questions
- Can the IWA-HM10 replace a benchtop monitor?
- For spot checks and recovery monitoring — yes. For full intra-operative anesthesia or ICU monitoring with ECG and continuous IBP, a benchtop monitor like IWA-VM10/VM20 is more appropriate.
- Does it measure ECG?
- No — the IWA-HM10 covers SpO2, pulse rate, NIBP, temperature, and ETCO2 (per configuration). For ECG monitoring, use IWA-HM20 (5-lead capable) or the tabletop IWA-VM series.
- What’s the difference between Spot and Monitoring modes?
- Spot mode displays single-measurement data with no continuous monitoring or trend chart. Monitoring mode shows continuous real-time data and trend chart with full alarm logic.
- Can it transmit data to a computer or app?
- The base IWA-HM10 stores data locally for 100 NIBP measurements. For wireless data transfer, see IWA-HM20 which supports iOS/Android app and optional WiFi.
- Which veterinary species does it cover?
- Canine, feline, and small-mammal patients. Sensor and cuff selection should match the patient body region and size.
