8-inch tabletop veterinary multi-parameter monitor with 6-parameter baseline and rechargeable li-ion battery for surgical and inpatient workflows.
Product Overview

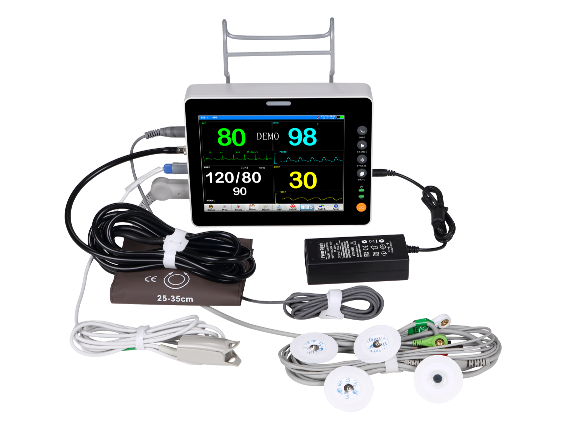

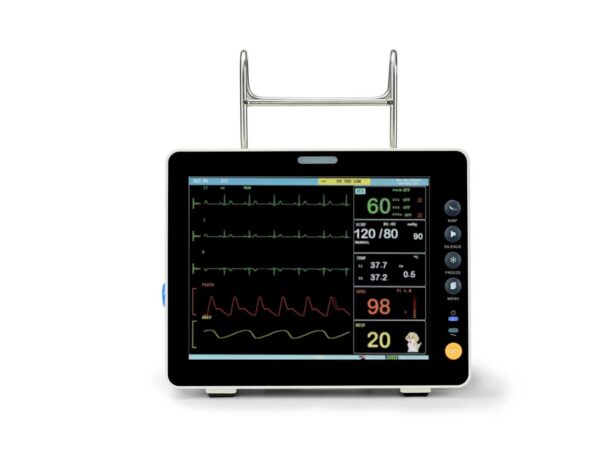

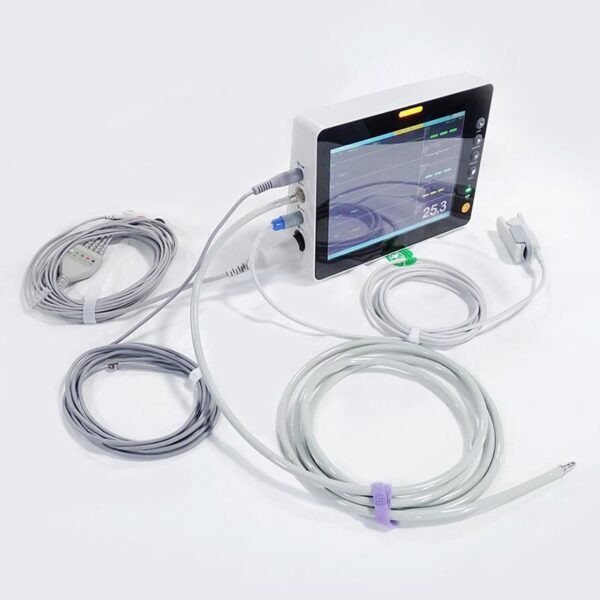

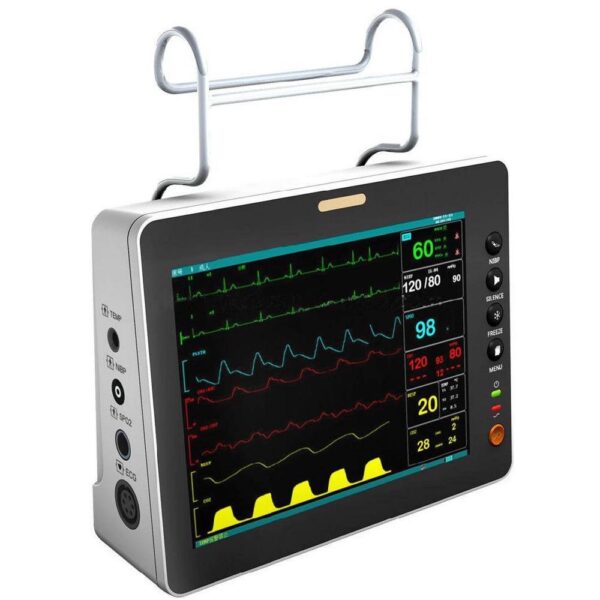

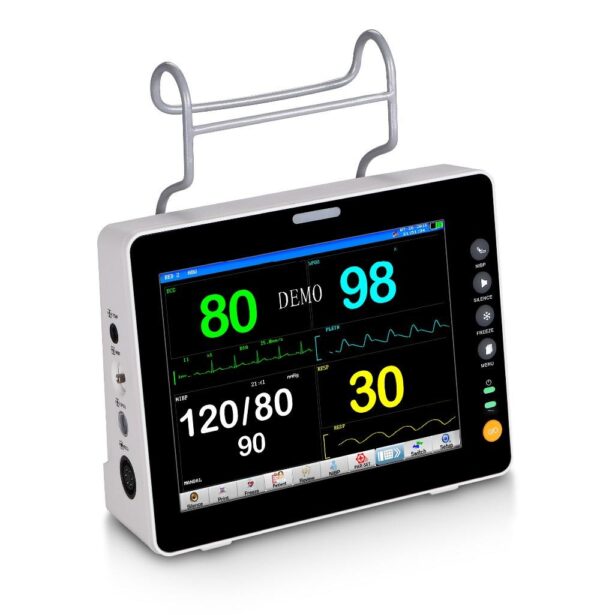

The IWA-VM10 is an 8-inch tabletop veterinary multi-parameter monitor delivering simultaneous monitoring of ECG, NIBP, SpO2, body temperature, respiration, and heart/pulse rate from a single chassis.
Full touch-screen operation with a navigation knob lets veterinary staff jump between parameters and waveforms during anesthesia or critical care without switching menus. A rechargeable lithium battery provides up to 3 hours of continuous monitoring during transport between operatory, recovery, and ward bays.
Key Features
- 8-inch color TFT display, 800 × 600 resolution
- 6 baseline parameters: ECG, NIBP, SpO2, TEMP, RESP, HR/PR — optional mainstream ETCO2 module

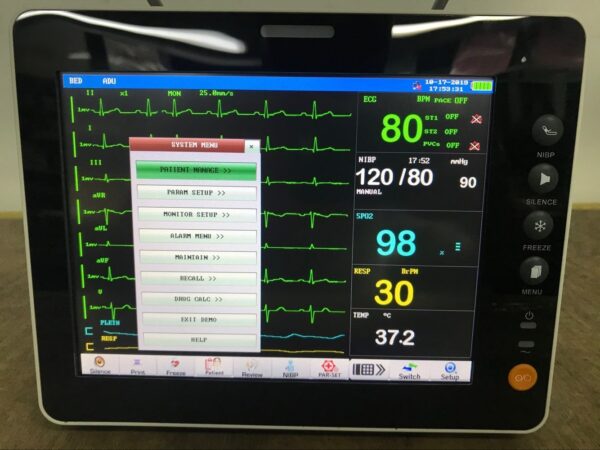

- Full touch-screen operation plus dedicated navigation knob
- Real-time S-T segment analysis and arrhythmia (ARR) analysis
- Multi-display modes: Standard, Large font, Trend Coexist, OxyCRG dynamic, Bed-to-bed
- 5-lead ECG (R, L, F, N, C) — 3 ECG + 1 SPO2 + 1 RESP waveforms in phase
- Rechargeable li-ion battery — 3 hours of continuous monitoring per charge
- Defibrillator-protected (4000 VAC isolation) and HF knife interference resistant
- Trend storage: 5 s/min/5 min granularity up to 1000 hours; 1000 NIBP groups; 200 alarm groups
- Built-in thermal-array recorder for waveform, NIBP recall, and alarm records
- TCP/IP networking for central monitoring system integration
- Standby mode for energy saving without losing patient session
Technical Specifications
| Display | 8-inch color TFT, 800 × 600 resolution |
| Parameters | ECG, NIBP, SpO2, TEMP, RESP, HR/PR (Optional: ETCO2) |
| ECG Leads | 5-lead (R, L, F, N, C) |
| ECG Lead Selection | I, II, III, avR, avL, avF, V |
| Heart Rate Range | 15–350 bpm; accuracy ±1 bpm or ±1% |
| S-T Segment Measurement | −2.0 to +2.0 mV |
| NIBP Method | Digital automatic oscillometric, manual / auto / continuous |
| NIBP Range (Adult Systolic) | 40–270 mmHg |
| SpO2 Range | 0–100%, accuracy ±2% (70–100%) |
| Pulse Rate Range | 20–300 bpm |
| Temperature | 5–50 °C, accuracy ±0.1 °C, YSI/CYF probe |
| Respiration Method | Thoracic impedance, 7–150 rpm, apnea alarm 10–40 s |
| ETCO2 (Optional) | Range 0–10% / 0–76 mmHg, accuracy <5% (±4 mmHg) |
| Power Supply | AC 100–240 V, 50/60 Hz; rechargeable Li-ion battery |
| Battery Runtime | Up to 3 hours continuous monitoring; max 24 h charge time |
| Recorder | Built-in thermal array, 50 mm width, 50 mm/s print speed |
| Networking | TCP/IP central monitoring platform |
| Trend Storage | 5 s × 8 h, 1 min × 168 h, 5 min × 1000 h |
| NIBP / Alarm Storage | 1000 groups NIBP, 200 groups alarms, 3600 s waveform |
| Safety Level | Class II, type CF, defibrillator-protected |
| Operating Temperature | 0 – 40 °C |
| Packing Size | 36 × 20 × 40 cm |
| Gross Weight | 4.5 kg |
| Warranty | 1 year |
Clinical Applications
- Intra-operative anesthesia monitoring in canine and feline procedures
- Post-surgical recovery monitoring with NIBP cycling
- ICU and critical-care multi-parameter surveillance
- Inpatient ward monitoring with central system integration
- Diagnostic ECG and arrhythmia analysis sessions
- Patient transport between operatory and recovery on battery power

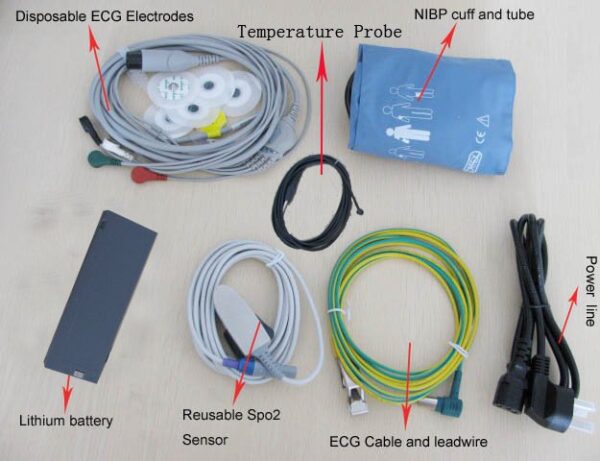

Package Contents
- 1 × IWA-VM10 monitor main unit (8-inch)
- 1 × 5-lead ECG cable set with snap leads
- 1 × Veterinary NIBP cuff set (multiple sizes)
- 1 × Veterinary SpO2 sensor (lingual or tail clip)
- 1 × Temperature probe (YSI or CYF compatible)
- 1 × Respiration sensor cable
- 1 × Power cable and built-in rechargeable battery
- 1 × Thermal recorder paper roll
- 1 × User manual
- 1 × Warranty certificate
- Optional: mainstream ETCO2 module + sampling line

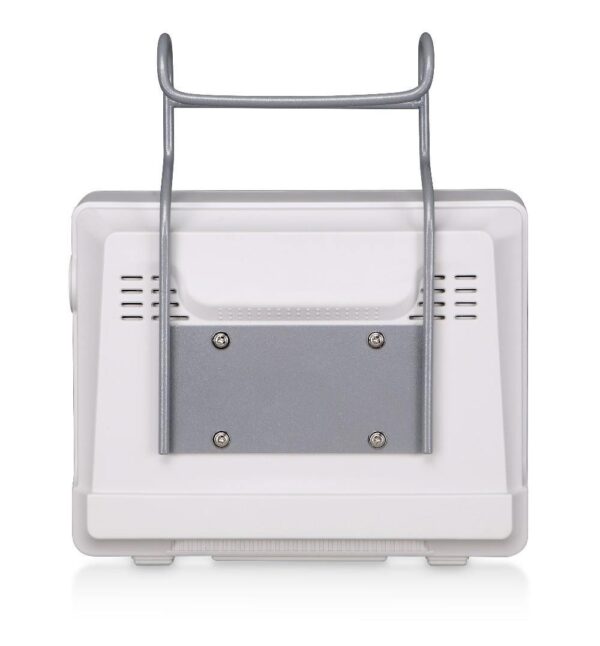

- Optional: rolling cart, mounting bracket
Why Choose IWA-VM10 8-inch Veterinary Multi-parameter Monitor
- All six baseline anesthesia and ICU parameters in one tabletop device — no need for separate pulse oximeter, NIBP, and temperature probes
- Defibrillator and HF-knife protection allows continuous monitoring through surgical events that would interrupt unprotected devices
- Veterinary-specific HR range (15–350 bpm) covers feline tachycardia and small-mammal pulse rates that human monitors clip
- Battery-powered transport monitoring keeps patient data continuous from operatory through recovery
- TCP/IP networking enables central monitoring for multi-bay inpatient wards
Warranty & Support
1-year manufacturer warranty on electronics and chassis. Probes, cables, and consumable cuffs follow standard wear-item terms.
Frequently Asked Questions
- Is the IWA-VM10 a complete replacement for a separate pulse oximeter?
- Yes — the integrated SpO2 module with veterinary-rated probe covers what a standalone handheld pulse oximeter does, plus delivers it on the same screen as NIBP, ECG, TEMP, RESP, and HR/PR.
- Can it monitor small mammals like rabbits and exotic pets?
- Yes — the 15–350 bpm HR/PR range accommodates rabbits, ferrets, and most exotic small mammals. Sensor probe selection (SpO2, temperature) varies by patient species and size.
- Is ETCO2 included or optional?
- ETCO2 is an optional mainstream module. Specify at order time if your protocols require capnography.
- How long does the battery actually last?
- Approximately 3 hours of continuous full-parameter monitoring per charge. Charge time up to 24 hours from fully depleted.
- Can multiple IWA-VM10 units feed a central monitoring station?
- Yes — TCP/IP networking lets multiple bedside monitors stream to a central monitoring platform. Network configuration is documented in the user manual.
