Handheld multi-parameter monitoring for veterinary practice — SpO2, pulse, respiration and end-tidal CO2 on a 5.5-inch 720P display.
Hero Media
Product Overview

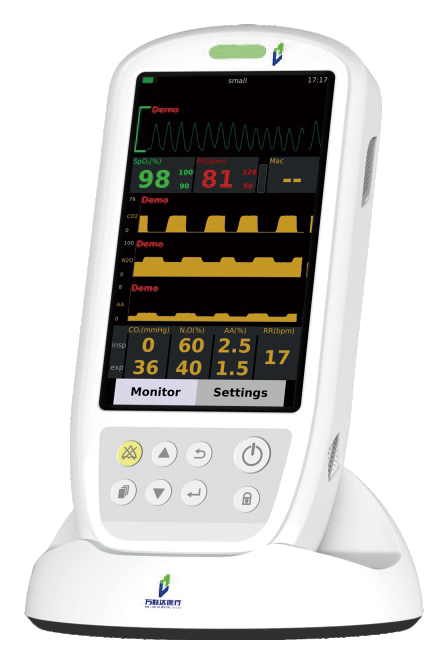

The IWA-HM310 is a handheld multi-parameter veterinary monitor for spot checks and continuous case-side monitoring. It measures oxygen saturation, pulse rate, respiration rate and end-tidal CO2, presenting live waveforms and numeric values on a 5.5-inch 720P colour display.
An 8000 mAh battery supports more than 8 hours of operation, and on-board trend storage holds up to 400 hours of data. The combination of handheld portability and full waveform display makes the IWA-HM310 suited to anaesthesia, recovery and emergency monitoring across exam rooms, wards and field work.
Key Features
- Multi-parameter measurement: SpO2, pulse rate, respiration rate and end-tidal CO2
- 5.5-inch 720P (1280 × 720) colour display with live waveforms and numeric values
- Mainstream CO2 sensing with real-time capnogram
- 8000 mAh battery — over 8 hours of continuous operation per charge
- Short-term trends (15 min / 1 h / 6 h) and long-term trend storage up to 400 hours
- Battery-status indicator, audible-and-visual alarms and SpO2 pulse tone
- Handheld 900 g form factor with charging stand
- USB 2.0 data interface
- Universal 90–260 V AC charging input
- Bilingual Chinese / English interface
Visual Evidence
Technical Specifications
| Device Type | Handheld multi-parameter veterinary monitor |
| Parameters | SpO2, Pulse Rate (PR), Respiration Rate (RR), EtCO2, FiCO2 |
| CO2 Range / Accuracy | 0–5.3 vol% ±0.26 vol%; 5.4–20 vol% ±8% of reading |
| Respiration Rate | 3–150 bpm, ±1 bpm |
| SpO2 | 0–100%, ±2% (70–100%) |
| Pulse Rate | 20–250 bpm, ±2 bpm |
| Display | 5.5-inch, 720P (1280 × 720) |
| Displayed Items | EtCO2, FiCO2, SpO2, RR, PR |
| Indicators | Battery status, audible-and-visual alarm, SpO2 pulse tone |
| Data Interface | USB 2.0 |
| Operating Time | >8 hours |
| Short-term Trend | 15 min / 1 h / 6 h |
| Long-term Trend | 400 hours |
| Power | 90–260 V AC / 5 VDC, 50–60 Hz, 20 W; built-in 8000 mAh lithium battery |
| Language | Chinese / English |
| Weight | 900 g |
| Dimensions | 202 × 95 × 45 mm |
| Device Classification | Class IIB |
| Electrical Safety | Class I, Type BF applied part |
Clinical Applications
- Anaesthesia monitoring of oxygenation, ventilation and pulse in canine, feline and equine patients
- Recovery-area monitoring after surgery and sedation
- Emergency and critical-care assessment during stabilisation and transport
- Ward and inpatient spot-check workflows
- Ambulatory and field use where a benchtop monitor is impractical
Workflow & Setup Notes
- Connect the SpO2 clip sensor and the mainstream CO2 sensor; waveforms render on the 720P display.
- Select short-term trend windows (15 min / 1 h / 6 h) for case review; long-term data is retained up to 400 hours.
- Charge from any 90–260 V mains via the charging stand between cases.
- Set alarm thresholds per protocol; alarms are audible and visual, with an SpO2 pulse tone.
Package Contents
- 1 × IWA-HM310 handheld monitor
- 1 × Charging stand

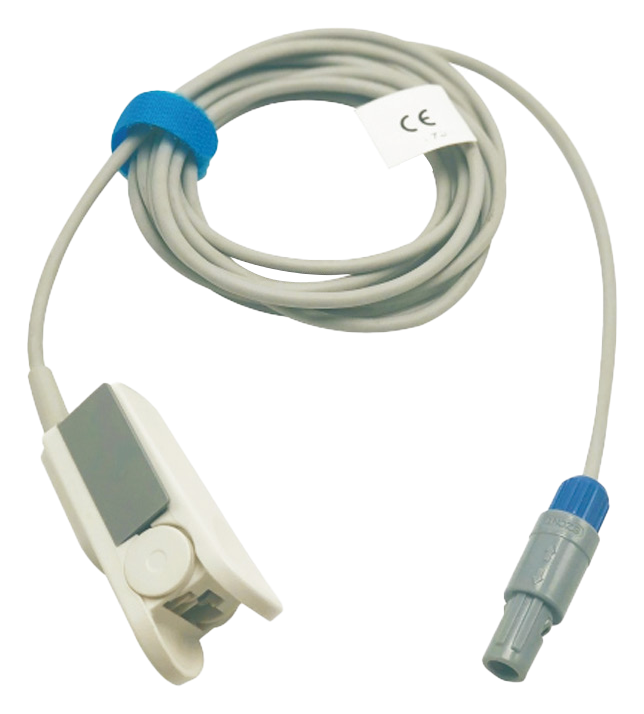

- 1 × Veterinary SpO2 clip sensor

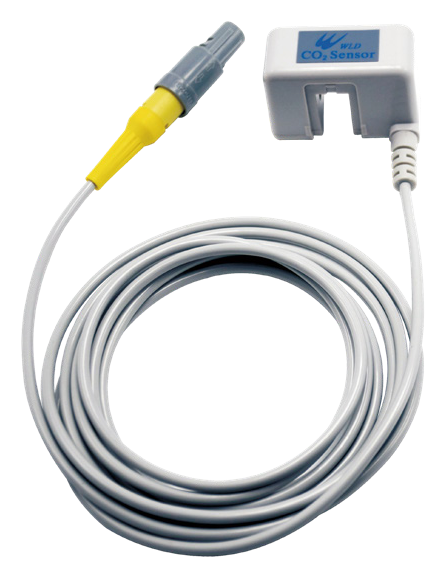

- 1 × Mainstream CO2 sensor with airway adapter
- 1 × AC power adapter
- 1 × User manual
Downloads & Documentation
Brochure and user manual available on request through your distributor.
Why Choose IWA-HM310
- Full waveforms, handheld: SpO2, pulse, respiration and EtCO2 with live capnogram on a 5.5-inch 720P screen.
- All-day battery: 8000 mAh for over 8 hours of operation, with 400-hour trend storage for case review.
- Flexible deployment: portable between exam rooms, recovery and field, charging from universal mains.
- Upgrade path: shares its platform with the IWA-HM320, which adds anaesthetic-gas analysis.
Warranty & Support
Manufacturer warranty period [TBC]. Training, maintenance and servicing are provided through the local distributor. Sensors and CO2 airway adapters are wear items.
Frequently Asked Questions
- What parameters does the IWA-HM310 measure?
- SpO2, pulse rate, respiration rate and end-tidal CO2 (with FiCO2), shown as live waveforms and numeric values on a 5.5-inch 720P display.
- Does the IWA-HM310 analyse anaesthetic gases?
- No. The IWA-HM310 is the multi-parameter base model. For anaesthetic-gas analysis (N2O and agents SEV, ISO, ENF, HAL, DES), see the IWA-HM320, which shares the same handheld platform.
- How long does the battery last?
- The built-in 8000 mAh battery supports more than 8 hours of operation and charges from any 90–260 V mains.
- How much trend data is stored?
- Short-term trends cover 15 min, 1 h and 6 h windows; long-term trend storage holds up to 400 hours.
- Which species does it support?
- Canine, feline, equine and other patients. Select an SpO2 sensor site appropriate to the patient.
