Flagship mainstream capnography at the airway — real-time EtCO2 with a rechargeable 10-hour lithium battery and optional Bluetooth.
Hero Media
Product Overview

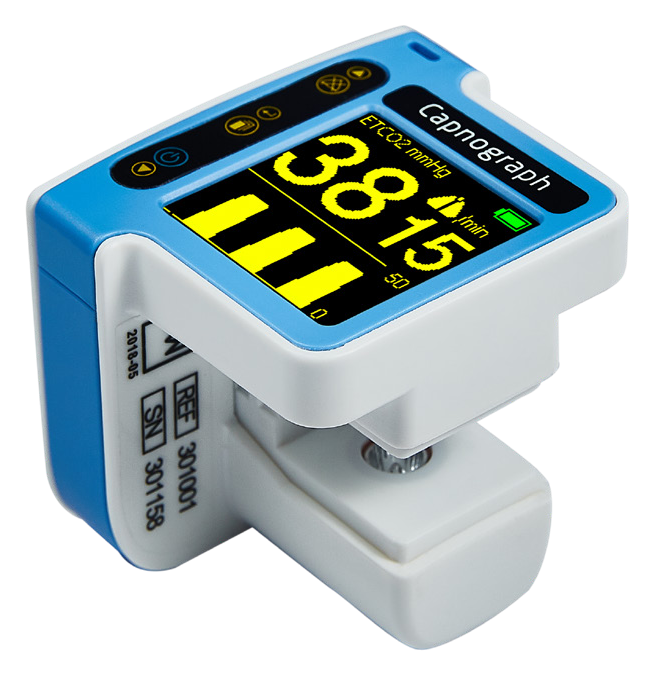

The IWA-CAPNO-M is the flagship configuration of the mainstream capnograph range. It measures, displays and monitors expired CO2 partial pressure and respiration rate during anaesthesia, recovery and respiratory therapy, with the sensor mounted directly on an in-line airway adapter for measurement at the airway and no sampling line.
The flagship configuration is powered by a high-capacity 1200 mAh rechargeable lithium battery that delivers 10 hours of operation and recharges in about 1.5 hours, removing the running cost of disposable cells. As a fully solid-state device it shows a real-time EtCO2 waveform within 4 seconds of power-up, needs no user calibration, and offers optional Bluetooth data transfer — all in an under-65 g sensor with IPX4 protection.
Key Features
- Mainstream measurement at the airway — no sampling line, no water trap
- Rechargeable 1200 mAh lithium battery — 10 hours of operation, ~1.5-hour recharge
- Real-time EtCO2 waveform displayed within 4 seconds of power-up
- Fully solid-state design — rugged and reliable in demanding environments
- No user calibration required
- Optional Bluetooth data transfer for record-keeping and remote display
- 1.4-inch colour TFT display with EtCO2 value, respiration rate and capnogram
- Comprehensive audible-and-visual alarms: adapter check, apnoea, low battery, EtCO2 and RR limits
- Under 65 g sensor head adds minimal weight to the breathing circuit
- IPX4 ingress protection; adult adapter dead space ≤6 ml, paediatric/neonatal ≤1 ml
Visual Evidence
Technical Specifications
| Device Type | Compact mainstream veterinary capnograph |
| Configuration | Flagship (CapnoMax class) — rechargeable lithium battery, optional Bluetooth |
| Parameters | EtCO2, Respiration Rate (RR), capnogram |
| CO2 Range | 0–99 mmHg / 0–9.9% / 0–9.9 kPa |
| CO2 Resolution | 1 mmHg / 0.1 kPa / 0.1% |
| CO2 Accuracy | 0–40 mmHg ±2 mmHg; 41–99 mmHg ±8% of reading |
| Respiration Rate | 3–150 bpm, ±1 bpm |
| Display | 1.4-inch colour TFT |
| CO2 Units | mmHg, kPa or % (selectable) |
| EtCO2 Update | Displayed after 3 breaths, updated every breath |
| System Response Time | <500 ms |
| Power | 3.7 V 1200 mAh rechargeable lithium battery |
| Battery Life | 10 hours; recharge 0–100% in ~1.5 hours |
| Data Transfer | Bluetooth (optional) |
| Alarms | Audible and visual: adapter check, apnoea, low battery, EtCO2 high/low, RR high/low |
| Ingress Protection | IPX4 |
| Airway Adapter Dead Space | Adult ≤6 ml; paediatric / neonatal ≤1 ml |
| Dimensions | 51 × 43 × 45 mm |
| Weight | <65 g (including battery) |
| Operating Environment | 0–40 °C, <90% RH (non-condensing), 50–120 kPa |
| Storage Environment | −20–70 °C, <95% RH (non-condensing), 50–120 kPa |
Clinical Applications
- Capnography during anaesthesia in canine, feline and equine patients
- Confirmation of endotracheal tube placement and apnoea detection
- Recovery and respiratory-therapy monitoring of ventilation
- Emergency and critical-care use during resuscitation
- High-volume practice and transport where a rechargeable battery lowers running cost
Workflow & Setup Notes

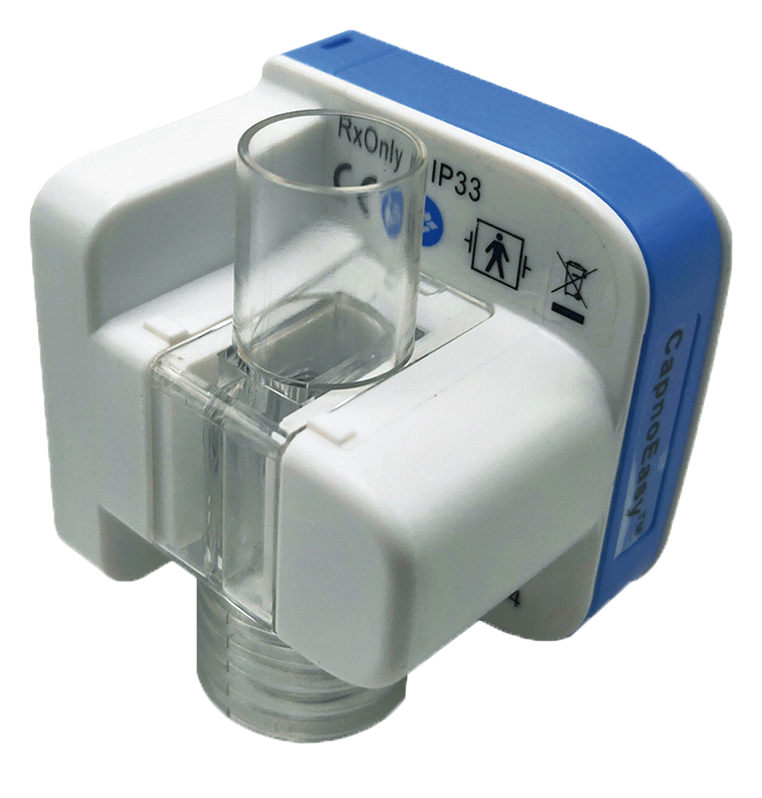

- Fit the airway adapter in-line between the endotracheal tube and breathing circuit, then mount the sensor head on the adapter.
- Select the adult (≤6 ml) or paediatric/neonatal (≤1 ml) adapter to match patient size and minimise dead space.
- A real-time EtCO2 waveform appears within 4 seconds; no warm-up calibration is required.
- Recharge the lithium battery between sessions — about 1.5 hours for a full charge.
- Pair the optional Bluetooth link for record-keeping or remote display where required.
Package Contents
- 1 × IWA-CAPNO-M mainstream capnograph sensor head
- 1 × Rechargeable 1200 mAh lithium battery
- 1 × Reusable airway adapter (adult)
- 1 × Charger / charging cable
- 1 × User manual
- Optional: paediatric / neonatal airway adapter, Bluetooth data module
Downloads & Documentation
Brochure and user manual available on request through your distributor.
Why Choose IWA-CAPNO-M
- Rechargeable, low running cost: 1200 mAh lithium battery for 10 hours of use with ~1.5-hour recharge — no disposable cells.
- Ready in seconds: real-time waveform within 4 seconds and no user calibration.
- Connected: optional Bluetooth data transfer for record-keeping and remote display.
- Rugged and light: fully solid-state, under 65 g, with IPX4 protection for theatre, ward and transport.
Warranty & Support
Manufacturer warranty period [TBC]. Training, maintenance and servicing are provided through the local distributor. The rechargeable battery and airway adapters are wear items.
Frequently Asked Questions
- How does the IWA-CAPNO-M differ from the IWA-CAPNO-E and -P?
- All three are mainstream capnographs sharing the same sensor performance. The flagship IWA-CAPNO-M uses a rechargeable 1200 mAh lithium battery (10 hours, ~1.5-hour recharge) and offers optional Bluetooth, whereas the IWA-CAPNO-E runs on AAA cells.
- How long does the battery last and how is it charged?
- The rechargeable 1200 mAh lithium battery delivers about 10 hours of use and recharges from 0–100% in roughly 1.5 hours.
- Does the IWA-CAPNO-M need calibration?
- No. It is a fully solid-state device requiring no user calibration, showing a real-time EtCO2 waveform within 4 seconds of power-up.
- Which airway adapter should I use?
- Use the adult adapter (dead space ≤6 ml) for larger patients and the paediatric/neonatal adapter (≤1 ml) for small patients to minimise added dead space.
- Which species does it support?
- Canine, feline, equine and other intubated or mask-ventilated patients. Match the airway adapter to patient size.
