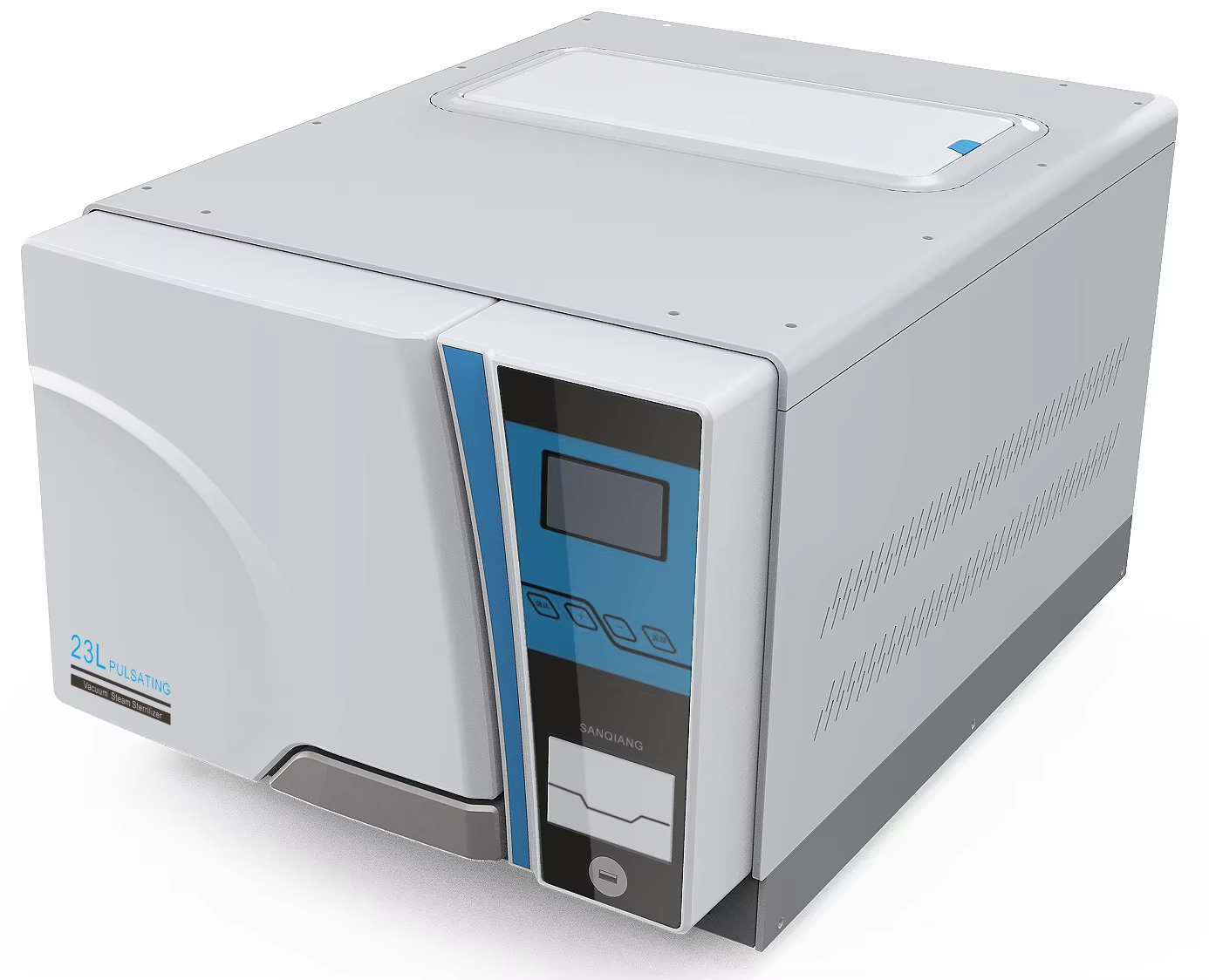

IWA-VPSS01 Class B Vacuum Pressure Steam Sterilizer (Tabletop, 23 L)

Product Overview

IWA-VPSS01 is a class b tabletop vacuum pressure steam sterilizer — 23 l stainless steel chamber, 4 sterilization programs, water-quality probe, 3.5″ lcd, 10,000+ cycle internal memory, usb cycle-report export, integrated thermal printer. Suited for veterinary instrument sterilization in mixed-practice clinics, equine facilities, and exotic / pocket-pet practices, surgical pack sterilization (fabric, drapes, gowns).

Key Features

• Class B compliant vacuum pressure steam sterilizer — full conformity with European Class B sterilizer standard for all load types (hollow, porous, solid).
• 23 L cylindrical chamber (Ø 246 × 450 mm) — accommodates instruments, fabric, and rubber loads up to 4.5 kg.
• 304 stainless steel construction — corrosion resistance and durability.
• Water-quality detection probe — prevents scale formation in the steam generator and piping that would otherwise degrade machine performance.
• 3.5″ LCD display — clearly shows steam generator temperature, sterilization chamber temperature, pressure, door lock status, program state, and cycle time.
• Four pre-programmed sterilization cycles — Metal (134 °C / 220 kPa / 10 min), Fabric (134 °C / 220 kPa / 10 min), Rubber & plastic (121 °C / 220 kPa / 25 min), B&D test (134 °C / 220 kPa / 3.5 min).
• Additional test programs — Bowie-Dick test, drying test, vacuum test.
• Intelligent overload and safety protection — high-performance door locking system, safety valve, fuse, drain and exhaust ports.
• 10,000+ cycle internal memory — cycle reports automatically savable via USB driver.

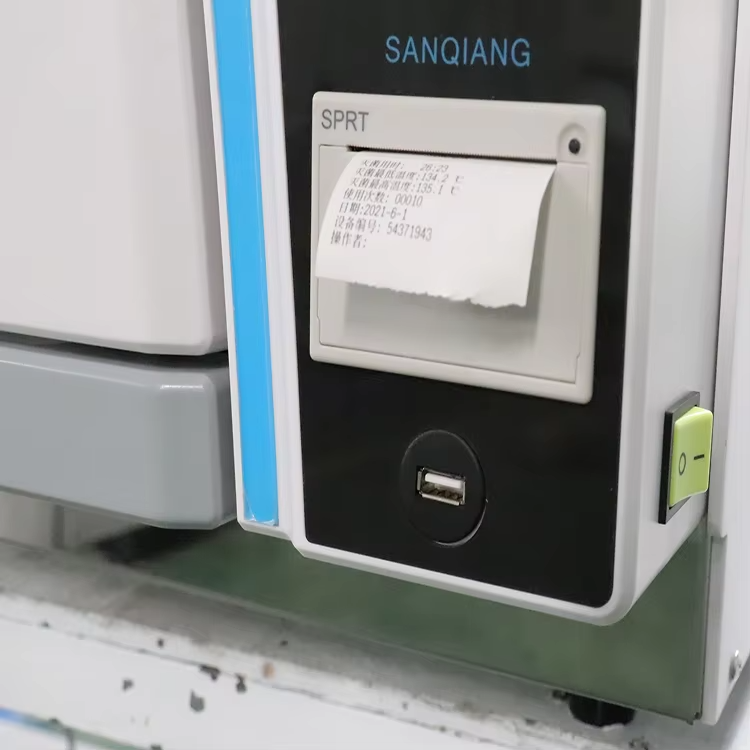

• Integrated thermal printer — hard-copy cycle report at the end of every run.
• 2 L water tank with carrier and door-mounted feed port.

Product Gallery

Technical Specifications

Clinical Applications

• Veterinary instrument sterilization in mixed-practice clinics, equine facilities, and exotic / pocket-pet practices
• Surgical pack sterilization (fabric, drapes, gowns)
• Endoscopic and dental tool sterilization
• Rubber and plastic tubing sterilization (low-temperature 121 °C cycle)
• Steam-quality validation with Bowie-Dick test

Workflow

Fill the 2 L water tank, load instruments on the rack and trays, and select the appropriate program (Metal / Fabric / Rubber / B&D) on the 3.5″ LCD. The unit automatically draws pre-vacuum, generates steam, sterilizes at the program-defined temperature and pressure, then dries the load. The water-quality probe monitors feed water throughout to prevent steam-generator scaling. Each cycle report is printed by the integrated thermal printer and saved to internal memory (10,000+ cycles); transfer reports to a USB drive for archive.

Package Contents

• 1 × IWA-VPSS01 Class B vacuum pressure steam sterilizer
• 1 × Internal stainless steel rack
• 2 × Sterilization trays (200 × 380 mm and 190 × 380 mm)
• 1 × Water-quality probe (built-in)
• 1 × Integrated thermal printer (built-in)
• 1 × Thermal printer paper rolls
• 1 × USB drive for cycle-report export
• 1 × Power cord (AC 220 V)
• 1 × User manual
• 1 × Quality certificate

Downloads

Why Choose IWA-VPSS01

• Workflow efficiency — pre-set programs cover the daily mix of metal / fabric / rubber loads with single-tap recall; thermal printer + USB export eliminate manual cycle logging.
• Clinical accuracy — full Class B vacuum cycle penetrates hollow and porous loads (e.g. endoscope channels) that gravity sterilizers cannot guarantee.
• Practice economics — water-quality probe prevents scaling that otherwise shortens steam generator lifespan and requires service-call descaling.

Warranty & Support

Manufacturer warranty per supply agreement. Spare parts and authorised in-region service available through IWA Medical / LumaVet.
