Dual-use vertical medical column — dual IV-pole sets, dual oxygen + dual vacuum + single air, 120 kg max load — serves two patient beds.
Product Overview

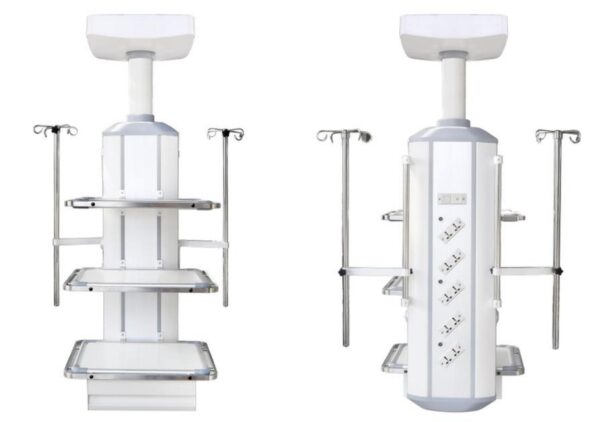

IWA-SP08 is the D-11 dual-use vertical medical column — configured to serve two adjacent patient bed / cage stations from a single ceiling-mount anchor. Two IV pole sets, dual oxygen + dual vacuum + single air gas terminals, eight mains outlets, 0–340° rotation, 120 kg max load.
Key Features
- High-strength aluminum-alloy boom — extruded profile, electrostatic powder coating with high-gloss finish, corrosion-resistant and easy to wipe down
- Multi-axis joints with mechanical friction brake (damping system) — position holds without drift, adjustable damping force
- Internally segmented column for strong-power / weak-power / gas pipelines — eliminates electrical-gas interference and keeps service accessible
- Standard medical gas terminals (oxygen, vacuum, compressed air) with ≥20,000 plug-in cycles per port
- Universal AC 220V (multi-standard sockets) — supports veterinary OR monitor, infusion pump, electrosurgery, suction units
Technical Specifications
| Configuration | Dual-use vertical medical column (serves 2 bed positions) |
| Horizontal rotation | 0–340° |
| Terminal box max load | 120 kg |
| Gas terminals | Oxygen × 2, vacuum × 2, compressed air × 1 |
| Mains outlets | 8 × 220V 10A universal |
| IV poles | 2 sets |
Clinical Applications
- Two-bed ward configurations sharing one ceiling anchor
- Recovery and intermediate care wards
- Boarding / hospitalization halls with paired patient stations
Package Contents
- Main pendant assembly (column / boom / terminal box) with factory-fitted gas pipelines and electrical wiring
- Instrument tray(s) per configuration
- IV pole(s) per configuration
- Ceiling-mount anchor plate and fixings
- Operating manual and installation drawings
Why Choose IWA-SP08
- One column serves two bed positions, which halves the installation work and the ceiling or floor penetrations in a two-bay ward or recovery area
- Multi-axis friction brakes hold the arm where it is set, so a monitor or pump does not drift during a procedure
- Strong-power, weak-power and gas lines run in separate internal segments of the column, keeping signal cables away from mains interference
- Gas terminals are rated for repeated connection cycles, which is what determines service life in a theatre used every day
FAQ
How is the pendant balanced — does it drift after positioning? Multi-axis spring-balanced boom with mechanical friction brakes at each joint. Once positioned within the working envelope it holds without drift; damping force is adjustable to clinician preference.
Can gas terminal and outlet count be customized? Yes. The standard configuration is listed in the spec table; oxygen / vacuum / compressed air / CO₂ ports, mains outlets, network and telephone outlets can be added or reduced per customer order before manufacturing.
What is the recommended installation requirement? Ceiling-mount installation with structural reinforcement at the anchor point. Confirm ceiling structural rating against pendant + max-load specification with your building engineer before installation.
