Vertical medical column with 300 mm electric lift, 120 kg max load, dual oxygen + dual vacuum + dual air gas terminals — multi-function ICU / ward column.
Product Overview

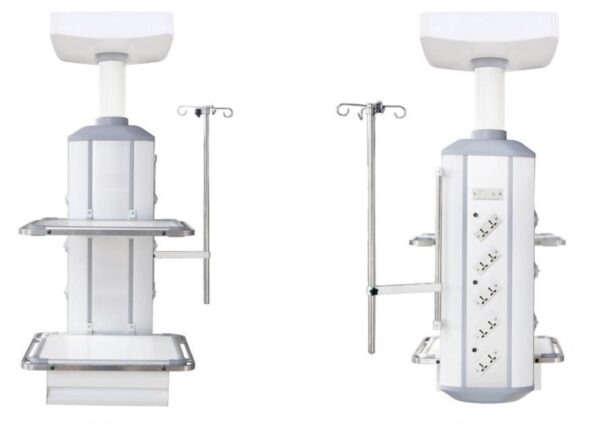

IWA-SP07 is the D-10 vertical medical column — a ceiling-mounted vertical pendant for ICU / hospitalization / ward use rather than an articulated surgical arm. 0–340° rotation, 300 mm electric lift, 120 kg max load, dual oxygen + dual vacuum + dual compressed air terminals, eight mains outlets, single IV pole.
Key Features
- High-strength aluminum-alloy boom — extruded profile, electrostatic powder coating with high-gloss finish, corrosion-resistant and easy to wipe down
- Multi-axis joints with mechanical friction brake (damping system) — position holds without drift, adjustable damping force
- Internally segmented column for strong-power / weak-power / gas pipelines — eliminates electrical-gas interference and keeps service accessible
- Standard medical gas terminals (oxygen, vacuum, compressed air) with ≥20,000 plug-in cycles per port
- Universal 220V mains outlets compatible with CN / US / UK plug standards
- Universal AC 220V (multi-standard sockets) — supports veterinary OR monitor, infusion pump, electrosurgery, suction units
Technical Specifications
| Configuration | Vertical medical column (ceiling-mount) |
| Horizontal rotation | 0–340° |
| Vertical lift | 300 mm electric |
| Terminal box max load | 120 kg |
| Gas terminals | Oxygen × 2, vacuum × 2, compressed air × 2 |
| Mains outlets | 8 × 220V 10A universal |
| IV pole | 1 set |
Clinical Applications
- Veterinary ICU and high-acuity hospitalization
- Anesthesia recovery wards
- Wards requiring fixed ceiling pendant without articulated arm
Package Contents
- Main pendant assembly (column / boom / terminal box) with factory-fitted gas pipelines and electrical wiring
- Instrument tray(s) per configuration
- IV pole(s) per configuration
- Ceiling-mount anchor plate and fixings
- Operating manual and installation drawings
Why Choose IWA-SP07
- D-10 model — vertical column multi geometry
- Aluminum profile + electrostatic powder coating for clinical durability and corrosion resistance
- Universal 220V mains outlets compatible with CN / US / UK plug standards
- Configurable platforms / drawers / extra gas / network / telephone per order
FAQ
How is the pendant balanced — does it drift after positioning? Multi-axis spring-balanced boom with mechanical friction brakes at each joint. Once positioned within the working envelope it holds without drift; damping force is adjustable to clinician preference.
Can gas terminal and outlet count be customized? Yes. The standard configuration is listed in the spec table; oxygen / vacuum / compressed air / CO₂ ports, mains outlets, network and telephone outlets can be added or reduced per customer order before manufacturing.
What is the recommended installation requirement? Ceiling-mount installation with structural reinforcement at the anchor point. Confirm ceiling structural rating against pendant + max-load specification with your building engineer before installation.
