IWA-IP10 Veterinary Infusion Pump (1200 ml/h, 10h Battery)

Hero Media

Product Overview

The IWA-IP10 is a classic vertical-design veterinary infusion pump built for accurate, repeatable IV fluid delivery in canine, feline and exotic-pet practice.

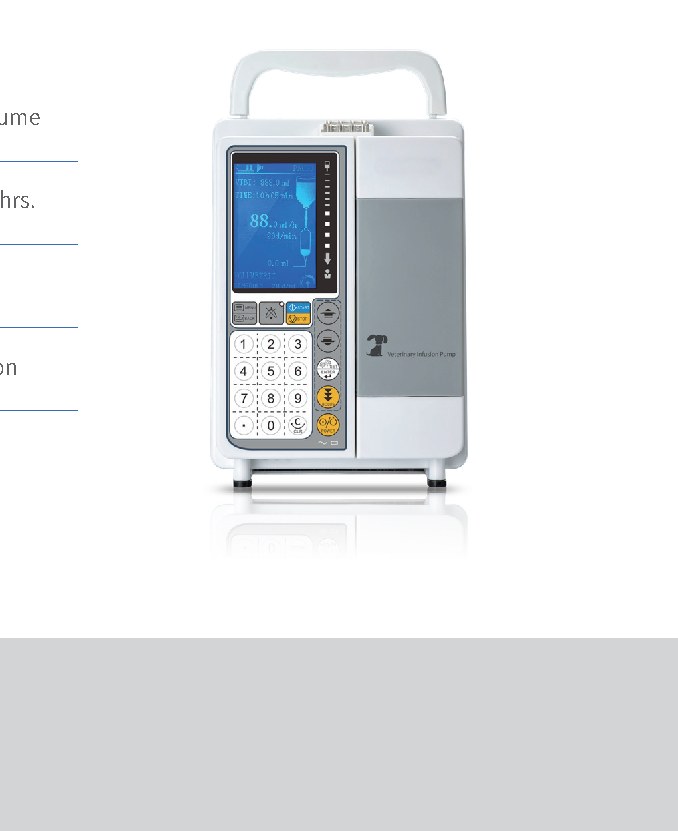

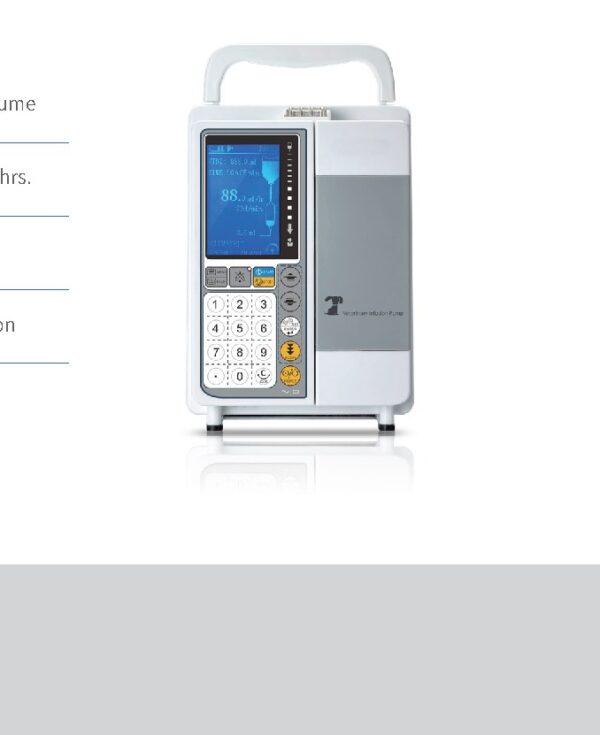

A 3.2″ high-brightness color LCD, full numeric keypad and dual-CPU control deliver a ±5% flow accuracy (after calibration) across the full 1.0–1200 ml/h range. A 3000 mAh rechargeable lithium battery provides more than 10 hours of cordless runtime at 25 ml/h, with 10-level adjustable occlusion-pressure detection (40–130 kPa) and ultrasonic air-bubble detection (≥50 μL) for safer overnight and unattended infusion.

Key Features

• Wide 1.0–1200 ml/h flow range — 0.1 ml/h step (1.0–99.9 ml/h) and 1 ml/h step (100–1200 ml/h)
• ±5% flow accuracy after calibration — safer for low-volume neonatal and exotic patients
• Three infusion modes — Volume mode, Time mode, Drug mode
• 3.2″ bright color LCD — readable at a glance from across the recovery room
• Full numeric keypad — faster, less error-prone entry vs scroll-wheel pumps
• 3000 mAh Li-ion battery — >10 h runtime at 25 ml/h, real-time remaining-battery display
• 10-level adjustable occlusion-pressure detection (40–130 kPa) with dynamic pressure display
• Ultrasonic air-bubble detection — sensitivity 50–300 μL, 10 levels adjustable
• Occlusion-pressure release function — automatic depressurise + restart after blockage cleared
• BOLUS function with adjustable flow rate for rapid loading dose
• KVO (Keep Vein Open) 1.0–5.0 ml/h, adjustable
• Purge mode 600 ml/h with displayed purge volume
• Night mode — auto-dim screen 5 min after standby
• Open IV-set system — accepts standard 10/15/20/60 d/mL single-use sets (3.4–4.5 mm diameter) after calibration
• Motor anti-reverse function with real-time monitoring
• 15+ audio-visual alarms covering air bubble, occlusion, door open, battery, motor, sensor and parameter errors
• Self-test before startup and continuously during infusion
• Universal-input 100–240 V AC, 50/60 Hz, ≤ 25 VA — global mains compatible
• Type CF / Class I / IPX3 classification
• Compact 145 × 150 × 200 mm, 1.7 kg — pole-mount or table-top

Technical Specifications

Visual Evidence

Clinical Applications

• Routine IV fluid therapy in canine and feline patients
• Critical-care and ICU continuous infusion with KVO and accurate dosing
• Post-surgical fluid maintenance and antibiotic delivery
• Overnight unattended infusion with battery backup and full alarm suite
• Exotic and neonatal patients requiring sub-1 ml/h precision
• Ambulatory clinic and house-call work — cordless 10+ h battery operation

Workflow & Installation Notes

• Pole-mountable or table-top — 1.7 kg chassis fits standard veterinary IV poles
• Open IV-set system — staff calibrate the first new-brand set, then save the profile for repeat use
• Daily pre-startup self-test runs in under 30 seconds; continuous self-monitoring during every infusion
• Night mode dims the screen 5 min after standby — reduces light disturbance in recovery wards
• Occlusion release auto-depressurises after blockage is cleared, then resumes infusion — reduces alarm fatigue and unnecessary line replacement

Package Contents

• 1 × IWA-IP10 veterinary infusion pump
• 1 × AC power cord (100–240 V)
• 1 × Pole-mount clamp
• 1 × User manual
• 1 × Warranty certificate
• Optional: standard veterinary IV sets (10 / 15 / 20 / 60 d/mL)

Why Choose IWA-IP10

• Safety-first design: dual-CPU control, ultrasonic bubble detection, 10-level occlusion + bubble settings and motor anti-reverse give multiple independent safeguards on every infusion.
• True 10+ hour battery: 3000 mAh lithium pack runs > 10 h at 25 ml/h — the pump keeps delivering through power outages and inter-room transport.
• Occlusion release function: auto-depressurise + restart after a blockage clears — cuts alarm fatigue and avoids unnecessary IV-set replacement.
• Operator-friendly UI: numeric keypad + big 3.2″ color LCD beats scroll-wheel pumps for entry speed and night-shift readability.
• Open-system IV compatibility: accepts any standard veterinary IV brand after a one-time calibration — no proprietary consumable lock-in.

Warranty & Support

1-year manufacturer warranty on hardware and software. Battery covered as a consumable under standard 6-month terms. Iwamed provides remote diagnostics, calibration support and spare-parts logistics through the local distributor.

Frequently Asked Questions

Can the IWA-IP10 use any IV set?

Yes — it is an open-system pump and accepts standard veterinary IV sets in 10 / 15 / 20 / 60 d/mL with tube diameter 3.4–4.5 mm. The first use of a new brand requires a one-time calibration, which is saved to the pump.

What happens during a power outage?

The 3000 mAh built-in lithium battery automatically takes over and provides > 10 h of cordless operation at 25 ml/h. The display shows remaining battery in real time, and the pump alarms in advance when the battery is low.

What is “occlusion pressure release” and why does it matter?

When a line becomes blocked, pressure builds up upstream of the obstruction. Many pumps simply alarm and stop, leaving the operator to manually relieve pressure. The IWA-IP10 automatically depressurises and resumes infusion once the blockage clears — reducing alarm fatigue and the need to replace IV sets.

Is the IWA-IP10 suitable for very small patients?

Yes — the 0.1 ml/h step at low flow rates and 50 μL ultrasonic bubble detection support neonatal canine, feline and exotic patients.

How is it cleaned between cases?

Wipe-down with standard veterinary disinfectant; the IPX3 splash-resistant chassis tolerates routine clinic cleaning protocols. Do not immerse the pump.
