CT, radiography, fluoroscopy and dental panoramic on one ring gantry — a 4.5 s scan across a 72 × 42 cm field of view.
Product Overview

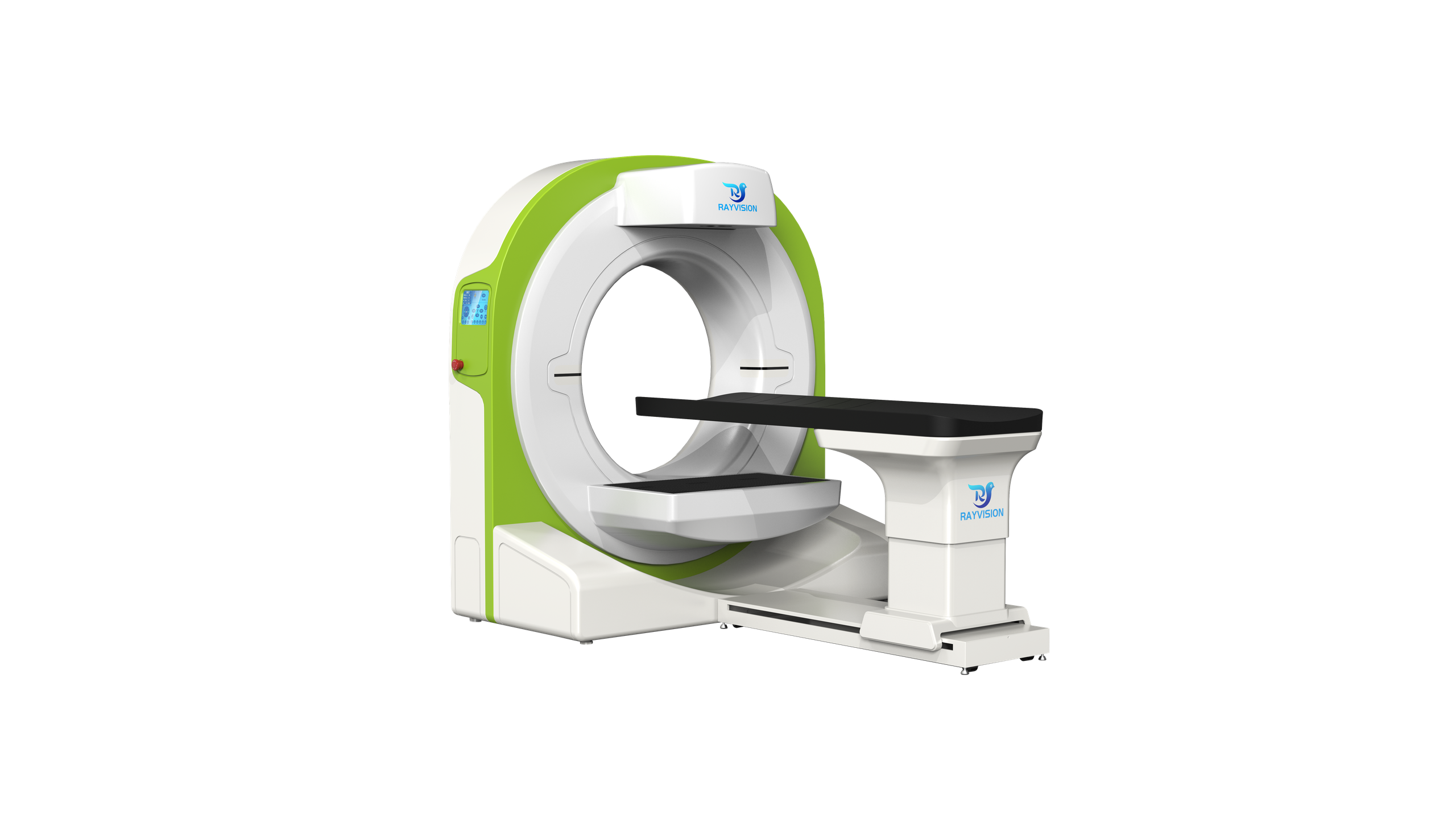

Vetease 3 is a ring-gantry veterinary cone-beam CT (CBCT) system from Rayvision Medical. One installation delivers CT, static digital radiography (DR), dynamic DR (fluoroscopy) and dental panoramic imaging, so a practice adds cross-sectional imaging without giving up a second room for radiography.
The 80 cm aperture, 72 × 42 cm maximum field of view and 4.5 s scan time cover routine head, thoracic, abdominal and dental studies. The Large Animal Imaging Mode and the CT-AIR breath-hold platform extend the system to larger canine patients and to motion-sensitive thoracic work.
Key Features
- 4-in-1 imaging — CT, static DR, fluoroscopy and dental panoramic from a single gantry.
- 4.5 s CT scan — 0.2 mm minimum slice thickness, 0.14 mm minimum pixel size, up to 1000 reconstructed slices.
- CT-AIR breath-hold platform — a built-in respiratory device holds the patient at end-inspiration to suppress motion artefact.
- Experience-triggered triple-phase contrast capture — one-click arterial, venous and delayed phases with real-time observation.
- Spectral correction and Smart MAR — multi-energy spectral optimisation removes beam-hardening artefact; metal-artefact reduction restores tissue detail around implants.
- Large Animal Imaging Mode — protocol designed for large body sizes, with triple-phase contrast supported.
- Multi-dimensional dental platform — one scan captures the complete upper and lower arches and the jaw.
- Standardised viewing and reporting — templated reports generated for routine examinations to reduce transcription error.

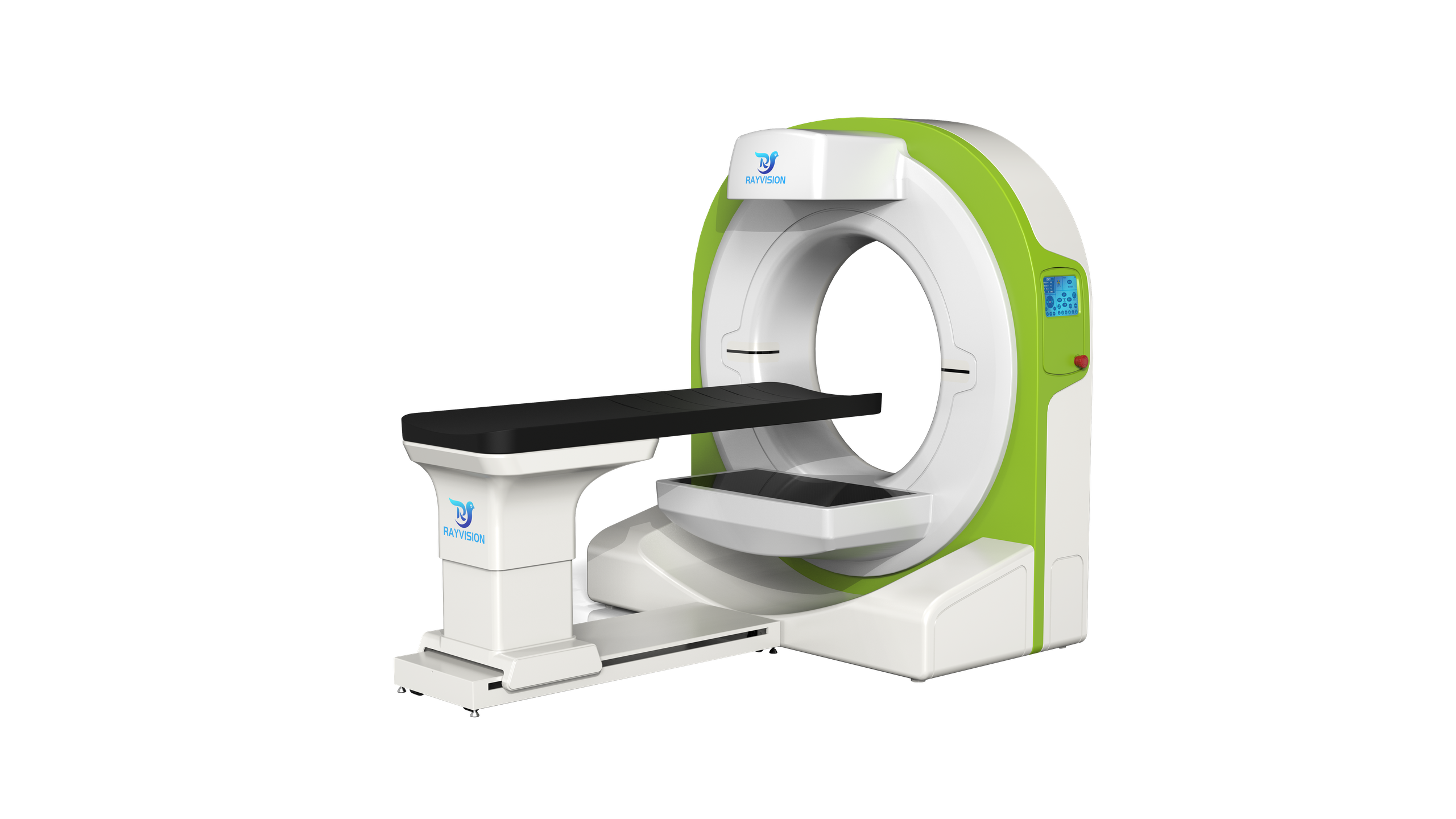

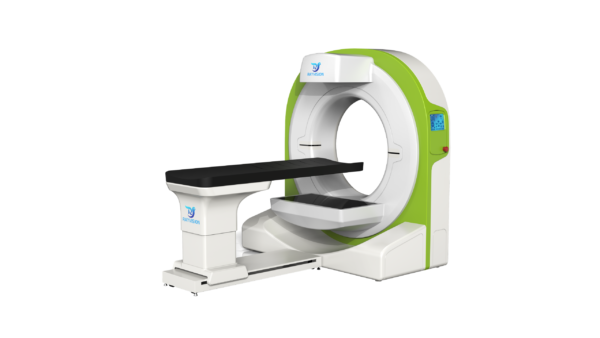

Product Gallery
Clinical Imaging Samples

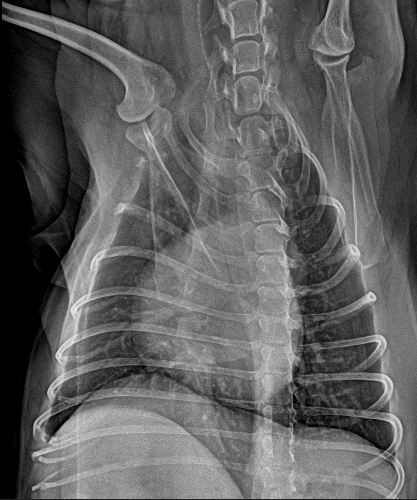

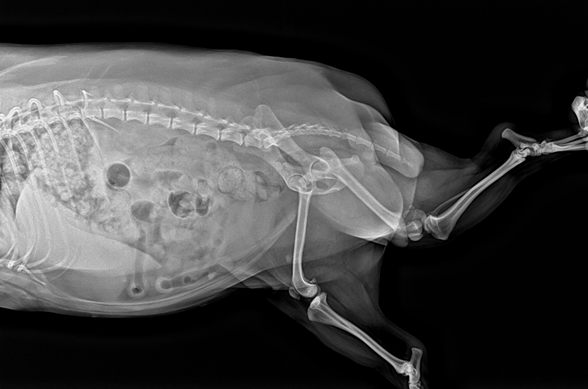

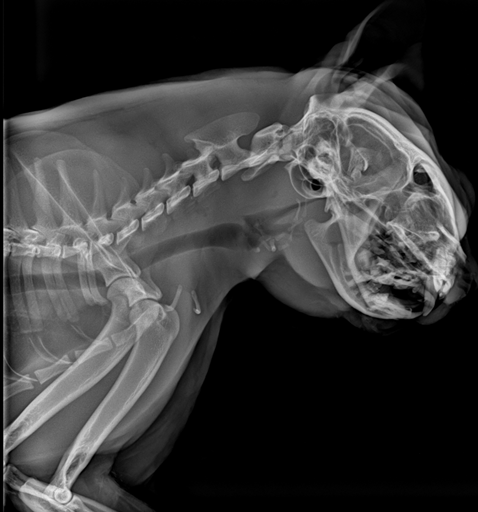

Reference radiographs acquired in DR mode.
Video

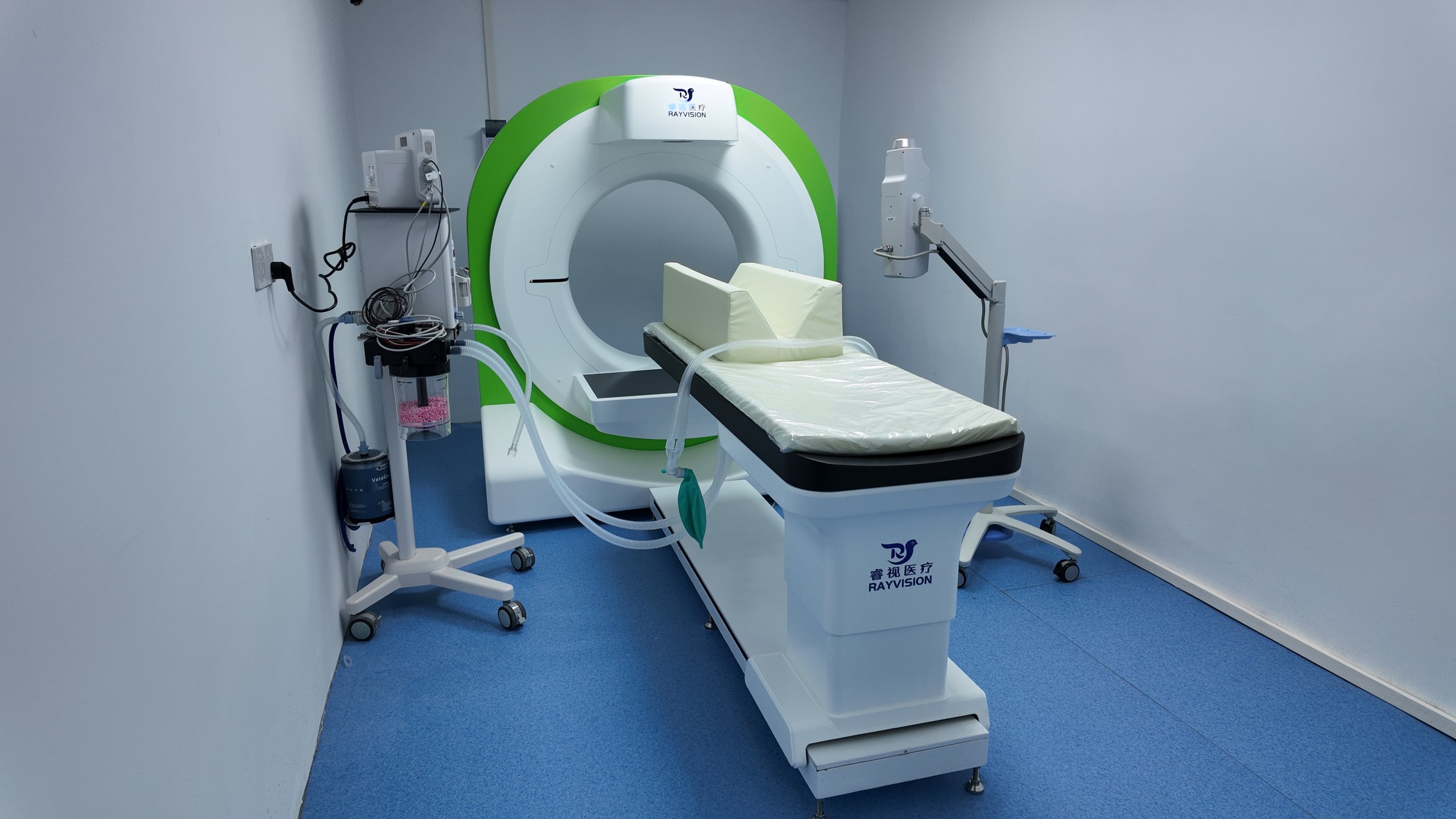

Installation and clinical case — Liangchen Animal Hospital, Shanghai
Technical Specifications — Gantry
| Gantry structure | Ring gantry |
| Aperture | 80 cm (31.5″) |
| Nominal power | 15 kW |
| Input power | (220 ±22) VAC |
| Tube heat capacity | 150 kJ |
| Maximum tube voltage | 120 kV |
| Tube power | 15 kW |
Technical Specifications — Scan Parameters
| Reconstructed slices | 1000 |
| Minimum slice thickness | 0.2 mm |
| Minimum pixel size | 0.14 mm |
| Detector matrix | 3072 × 3072 |
| CT scan time | 4.5 s |
| Maximum FOV (L × W) | 72 × 42 cm (28.3″ × 16.5″) |
Technical Specifications — Imaging Modes
| CT | 4.5 s scan, 0.2 mm slices, 72 × 42 cm FOV, CT-AIR breath-hold |
| DR | Edge enhancement, multiple processing algorithms, TPLO / VHS / TTA measurement tools |
| Fluoroscopy (dynamic DR) | Real-time dynamic enhancement, up to 1 minute continuous exposure |
| Dental panoramic | Full upper and lower arches and jaw from one scan |
| Post-processing | 3D volume rendering, maximum intensity projection (MIP), soft-tissue mode, full-scene region-specific protocols |
Clinical Applications
| Region | Conditions |
|---|---|
| Head & neck | Cerebral oedema, brain haemorrhage, sinusitis, otitis, mastoid effusion, nasopharyngeal stenosis, tracheal narrowing |
| Dental | Periodontitis, periapical abscess, alveolar bone atrophy, oral cysts, tooth root resorption |
| Thoracic | Pulmonary oedema, pulmonary nodules, interstitial pneumonia, pulmonary inflammation |
| Abdominal | Abdominal wall inflammation, peritoneal effusion, urography, renal imaging, cholelithiasis, pancreatitis, renal sclerosis |
| Vascular | Abdominal triple-phase angiography, peripheral arterial thrombosis, vascular stenosis |
| Spinal | Myelography, disc protrusion, vertebral imaging, spondylosis, thoracic vertebral fracture |
| Oncology | Thyroid, nasal, ovarian, renal and adrenal tumours |
| Other | Arthritis, thoracic duct imaging, peritoneal calcification |
Clinical Case Highlights
- Portosystemic shunt — CT angiography showed multiple tortuous vessels near the left kidney with oesophageal varices, consistent with an acquired shunt secondary to primary hepatic disease.
- Thoracic duct imaging — Used to investigate congenital or acquired limb oedema and the cause of chylothorax, assess thoracic duct ligation outcome, and map sentinel lymph nodes in oncology patients.
- Tympanic empyema — CT showed purulent material in the tympanic cavity with surrounding inflammation, correlating with head shaking and aural discharge.
Site Planning and Installation
Vetease 3 is a fixed installation in a shielded room. The manufacturer’s layout drawing uses a 2500 × 3100 mm room.
Power and Environment
| Supply voltage | Single-phase (220 ±22) VAC |
| Supply internal resistance | ≤ 0.5 Ω |
| Frequency | 50 Hz / 60 Hz |
| Power capacity | ≥ 15 kVA |
| Power cable | 6 mm² |
| Shielded room | 3 mm lead equivalent |
| Operating temperature | 10 °C – 35 °C |
| Relative humidity | 30 % – 75 % RH, non-condensing |
| Atmospheric pressure | 700 – 1060 hPa |
| Wall clearance | ≥ 30 cm around the system |
Shielded Room Preparation
Room requirements from the manufacturer’s CT installation-conditions guide; a site survey confirms the final layout.
| Room area | Minimum 3 × 3 m; 3.5 × 3.5 m recommended |
| Room height | ≥ 2 m |
| Door opening | ≥ 1 m wide for whole-unit entry (≥ 0.85 m with the main-unit covers removed); ≥ 1.8 m high |
| Wall shielding | 240 mm clay brick + 20 mm protective coating, or any construction equal to 3 mm lead; concrete walls ≥ 240 mm |
| Floor / ceiling shielding | Ground floor: ceiling 3 mm Pb. Intermediate floors: floor and ceiling 3 mm Pb. Top floor: floor 3 mm Pb |
| Floor | Level concrete, foundation depth > 120 mm, flatness ≤ 2 mm, load capacity > 500 kg/m²; ground floor preferred |
| Delivery route | Ramps < 5°; use a forklift or lifting equipment for steeper access |
| Observation window | Standard lead glass 400 × 600 × 15 mm in a 405 × 605 mm opening, supported by 40 × 60 mm square tube |
| Cable entry | Ø 50 mm hole near the operator console |
| Electrical | Dedicated circuit breaker; voltage stabiliser if mains deviates more than ±10 %; UPS where outages are frequent |
| Signage | Radiation warning sign and exposure indicator light outside the room door |
Workflow Notes
- Acquisition modes: speed, high-precision and half-fan large-field CBCT, plus fluoroscopy and DR exposures.
- The workstation uses a dedicated graphics card and a dedicated Gigabit network card for the detector.
- Hospital name and logo, and operator accounts, are configured in service mode.
- Smart dose management presets scan parameters to limit exposure while maintaining diagnostic image quality.
Package Contents
- 1 × CT main unit (gantry)
- 1 × Patient table
- 1 × Operator control console with control cable
- 1 × Acquisition and reconstruction workstation — computer, monitor, keyboard and mouse
- 1 × Software licence dongle (USB)
- 1 × Emergency stop switch (fitted to the gantry side panel)
- Power and interconnection cables
Shipped in two wooden crates: CT main unit and patient table.
Downloads
Product brochures and technical documentation are available on request — contact IWA.
Why Choose Vetease 3
- Workflow efficiency — CT, DR, fluoroscopy and dental panoramic share one room and one workstation; triple-phase contrast studies start with one click.
- Clinical accuracy — CT-AIR breath-hold, spectral correction and Smart MAR address the three main sources of CBCT artefact: motion, beam hardening and metal.
- Practice economics — One installation serves CT, radiography, fluoroscopy and dental caseloads, and preset dose management standardises every scan.
Warranty and Support
1-year whole-system warranty. Extended warranty is available for purchase — contact IWA for terms and service coverage in your region.
Installation is carried out against the manufacturer’s installation manual: the main unit and patient table are connected, the console and workstation are cabled, and scanning, reconstruction, fluoroscopy and DR acquisition are verified before handover.
FAQ
Q: How does Vetease 3 differ from Vetist 3?
Both use an 80 cm aperture, 4.5 s scan, 0.2 mm slices and a 72 × 42 cm field of view. Vetease 3 uses a ring gantry with a 0.14 mm minimum pixel size and adds the Smart Imaging Enhancement algorithm suite; Vetist 3 uses an O-shaped gantry with a 0.2 mm minimum pixel size.
Q: What room does it need?
A shielded room of 3 mm lead equivalent, at least 3 × 3 m (3.5 × 3.5 m recommended), a single-phase (220 ±22) VAC supply of ≥ 15 kVA on a dedicated breaker, and 30 cm clearance around the system.
Q: Can it scan large-breed dogs?
Yes. The Large Animal Imaging Mode is designed for large body sizes and supports triple-phase contrast. The brochure does not state a maximum patient weight — confirm your caseload with IWA.
Q: Does it replace a separate DR room?
Vetease 3 includes static DR and fluoroscopy with edge enhancement and TPLO / VHS / TTA measurement tools, so radiography can be performed on the same system.
Q: What warranty applies?
1-year whole-system warranty, with extended warranty available for purchase.
