IWA-CAPNO-P Compact Veterinary Mainstream Capnograph

Professional mainstream capnography at the airway — real-time EtCO2 and respiration rate with optional Bluetooth data transfer.

Hero Media

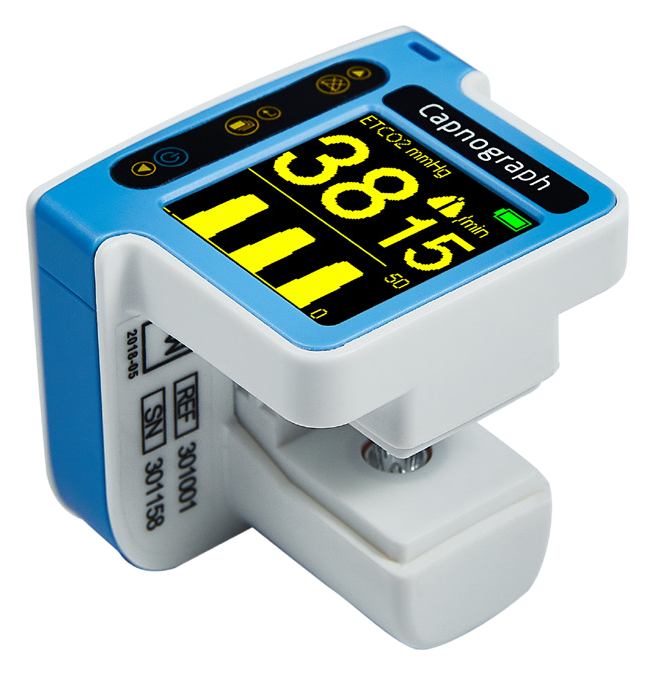

IWA-CAPNO-P compact mainstream veterinary capnograph mounted on an airway adapter, 1.4-inch colour display showing EtCO2 value and capnogram

Product Overview

The IWA-CAPNO-P is the professional configuration of the mainstream capnograph range. It measures, displays and monitors expired CO2 partial pressure and respiration rate during anaesthesia, recovery and respiratory therapy, with the sensor mounted directly on an in-line airway adapter for measurement at the airway and no sampling line.

As a fully solid-state device it shows a real-time EtCO2 waveform within 4 seconds of power-up and needs no user calibration. The professional configuration adds optional Bluetooth data transfer for record-keeping and remote display, while retaining the under-65 g form factor and IPX4 protection of the range.

Key Features

Mainstream measurement at the airway — no sampling line, no water trap
Real-time EtCO2 waveform displayed within 4 seconds of power-up
Fully solid-state design — rugged and reliable in demanding environments
No user calibration required
Optional Bluetooth data transfer for record-keeping and remote display
1.4-inch colour TFT display with EtCO2 value, respiration rate and capnogram
Comprehensive audible-and-visual alarms: adapter check, apnoea, low battery, EtCO2 and RR limits
Under 65 g sensor head adds minimal weight to the breathing circuit
IPX4 ingress protection
Adult airway adapter dead space ≤6 ml; paediatric / neonatal adapter ≤1 ml

Visual Evidence

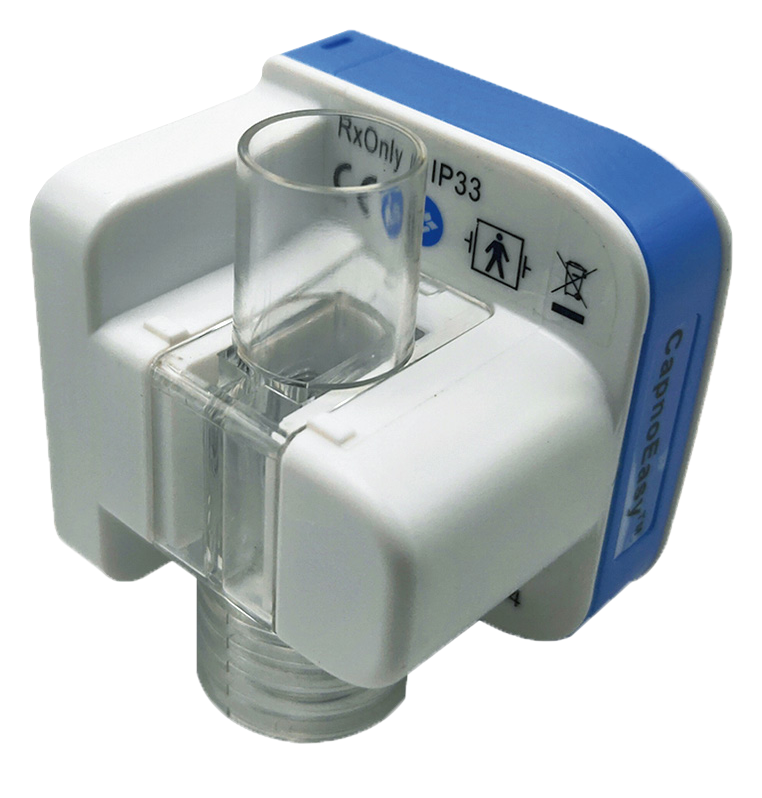

IWA-CAPNO-P mainstream airway adapter with transparent optical window, RxOnly and IP33 markings — Mainstream airway adapter with transparent optical window; available in adult (≤6 ml) and paediatric/neonatal (≤1 ml) dead-space versions.

Technical Specifications

Device Type	Compact mainstream veterinary capnograph
Configuration	Professional (CapnoPro class) — optional Bluetooth data transfer
Parameters	EtCO2, Respiration Rate (RR), capnogram
CO2 Range	0–99 mmHg / 0–9.9% / 0–9.9 kPa
CO2 Resolution	1 mmHg / 0.1 kPa / 0.1%
CO2 Accuracy	0–40 mmHg ±2 mmHg; 41–99 mmHg ±8% of reading
Respiration Rate	3–150 bpm, ±1 bpm
Display	1.4-inch colour TFT
CO2 Units	mmHg, kPa or % (selectable)
EtCO2 Update	Displayed after 3 breaths, updated every breath
System Response Time	<500 ms
Power	2 × AAA alkaline / lithium-iron batteries or 3.7 V 1200 mAh rechargeable lithium battery
Battery Life	6 hours (alkaline) / 10 hours (lithium-iron or rechargeable)
Data Transfer	Bluetooth (optional)
Alarms	Audible and visual: adapter check, apnoea, low battery, EtCO2 high/low, RR high/low
Ingress Protection	IPX4
Airway Adapter Dead Space	Adult ≤6 ml; paediatric / neonatal ≤1 ml
Dimensions	51 × 43 × 45 mm
Weight	<65 g (including battery)
Operating Environment	0–40 °C, <90% RH (non-condensing), 50–120 kPa
Storage Environment	−20–70 °C, <95% RH (non-condensing), 50–120 kPa

Clinical Applications

Capnography during anaesthesia in canine, feline and equine patients
Confirmation of endotracheal tube placement and apnoea detection
Recovery and respiratory-therapy monitoring of ventilation
Emergency and critical-care use during resuscitation
Patient transport, with optional Bluetooth data capture for the record

Workflow & Setup Notes

Fit the airway adapter in-line between the endotracheal tube and breathing circuit, then mount the sensor head on the adapter.
Select the adult (≤6 ml) or paediatric/neonatal (≤1 ml) adapter to match patient size and minimise dead space.
A real-time EtCO2 waveform appears within 4 seconds; no warm-up calibration is required.
Pair the optional Bluetooth link for record-keeping or remote display where required.

Package Contents

1 × IWA-CAPNO-P mainstream capnograph sensor head
1 × Reusable airway adapter (adult)
1 × Battery set
1 × User manual
Optional: paediatric / neonatal airway adapter, Bluetooth data module

Downloads & Documentation

Brochure and user manual available on request through your distributor.

Why Choose IWA-CAPNO-P

Professional capnography: mainstream EtCO2 at the airway with optional Bluetooth data transfer for the record.
Ready in seconds: real-time waveform within 4 seconds and no user calibration.
Flexible power: AAA cells or a rechargeable lithium battery, 6–10 hours of use.
Rugged: fully solid-state with IPX4 protection for theatre, ward and transport.

Warranty & Support

Manufacturer warranty period [TBC]. Training, maintenance and servicing are provided through the local distributor. Airway adapters are wear items.

Frequently Asked Questions

How does the IWA-CAPNO-P differ from the IWA-CAPNO-E?: Both are mainstream capnographs sharing the same sensor performance. The professional IWA-CAPNO-P adds optional Bluetooth data transfer and supports a rechargeable lithium battery in addition to AAA cells.
Does the IWA-CAPNO-P need calibration?: No. It is a fully solid-state device requiring no user calibration, showing a real-time EtCO2 waveform within 4 seconds of power-up.
What does the Bluetooth option do?: Optional Bluetooth allows EtCO2 and respiration data to be transferred for record-keeping or remote display. It is an optional feature of the professional configuration.
Which airway adapter should I use?: Use the adult adapter (dead space ≤6 ml) for larger patients and the paediatric/neonatal adapter (≤1 ml) for small patients to minimise added dead space.
Which species does it support?: Canine, feline, equine and other intubated or mask-ventilated patients. Match the airway adapter to patient size.

Dimensions	51 × 43 × 45 in
