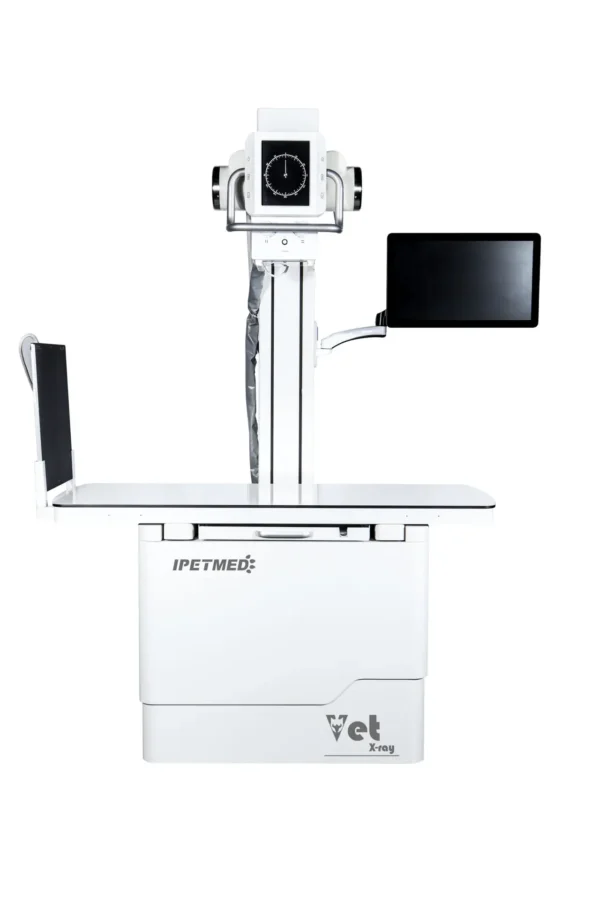

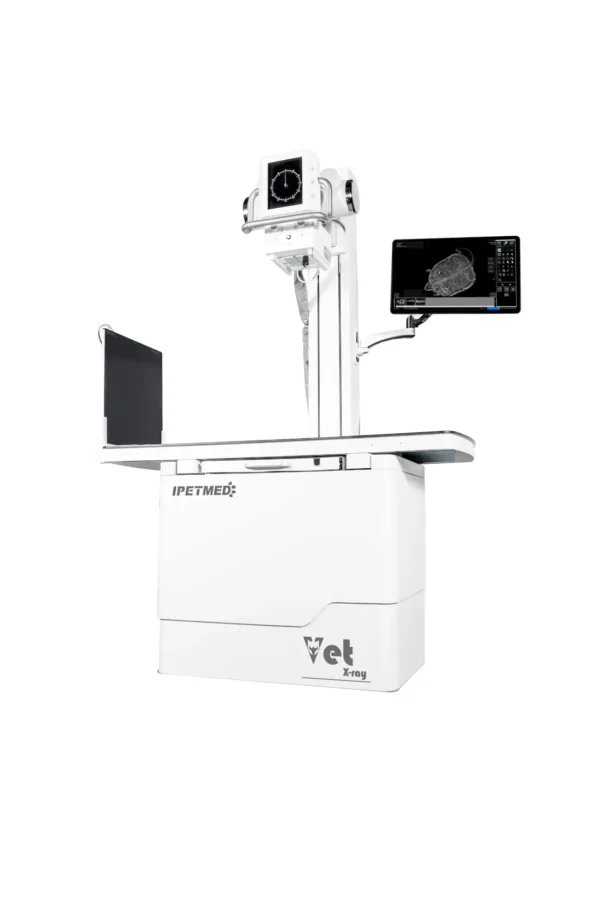

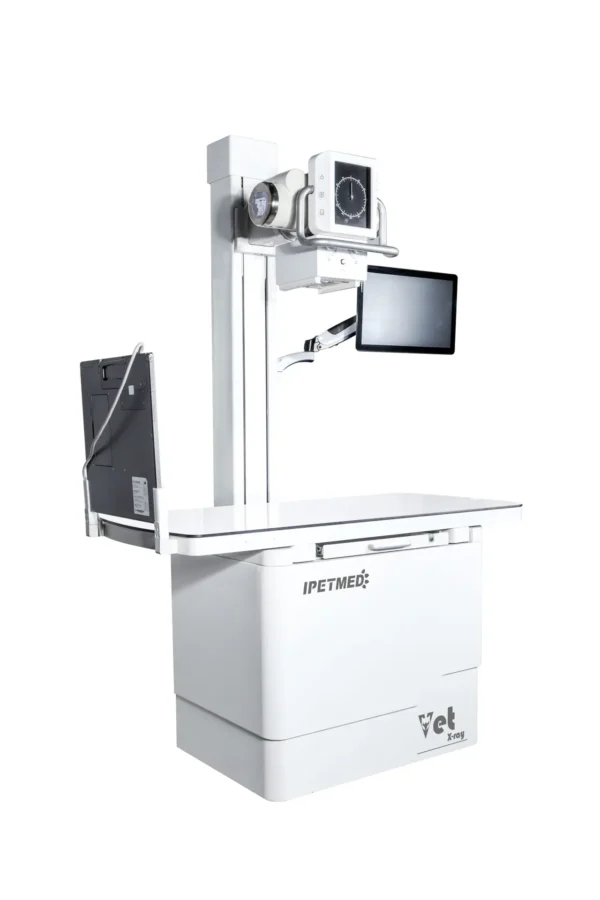

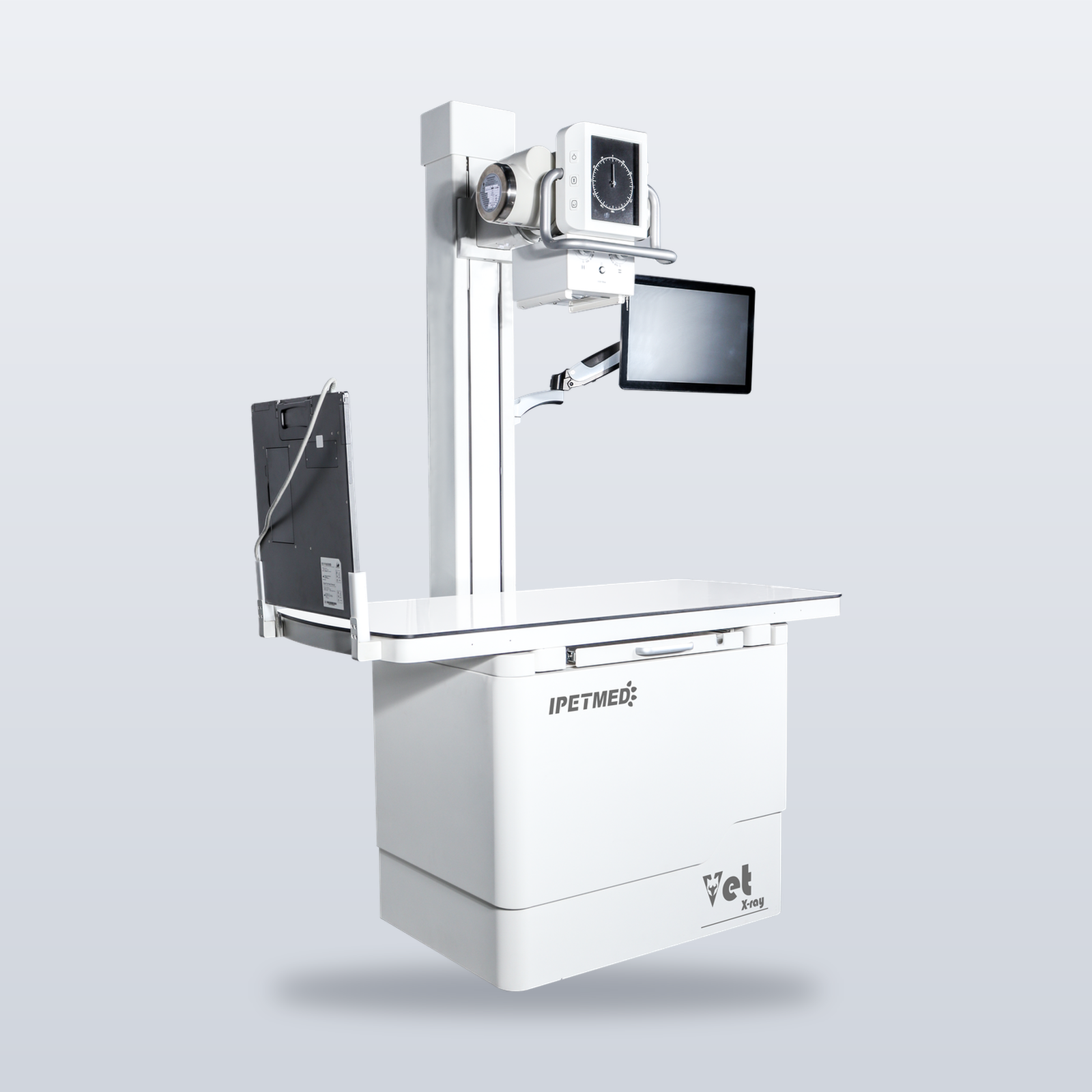

iPet-400Pro Veterinary DR X-ray Imaging System
Original price was: $40,000.00.$32,000.00Current price is: $32,000.00.

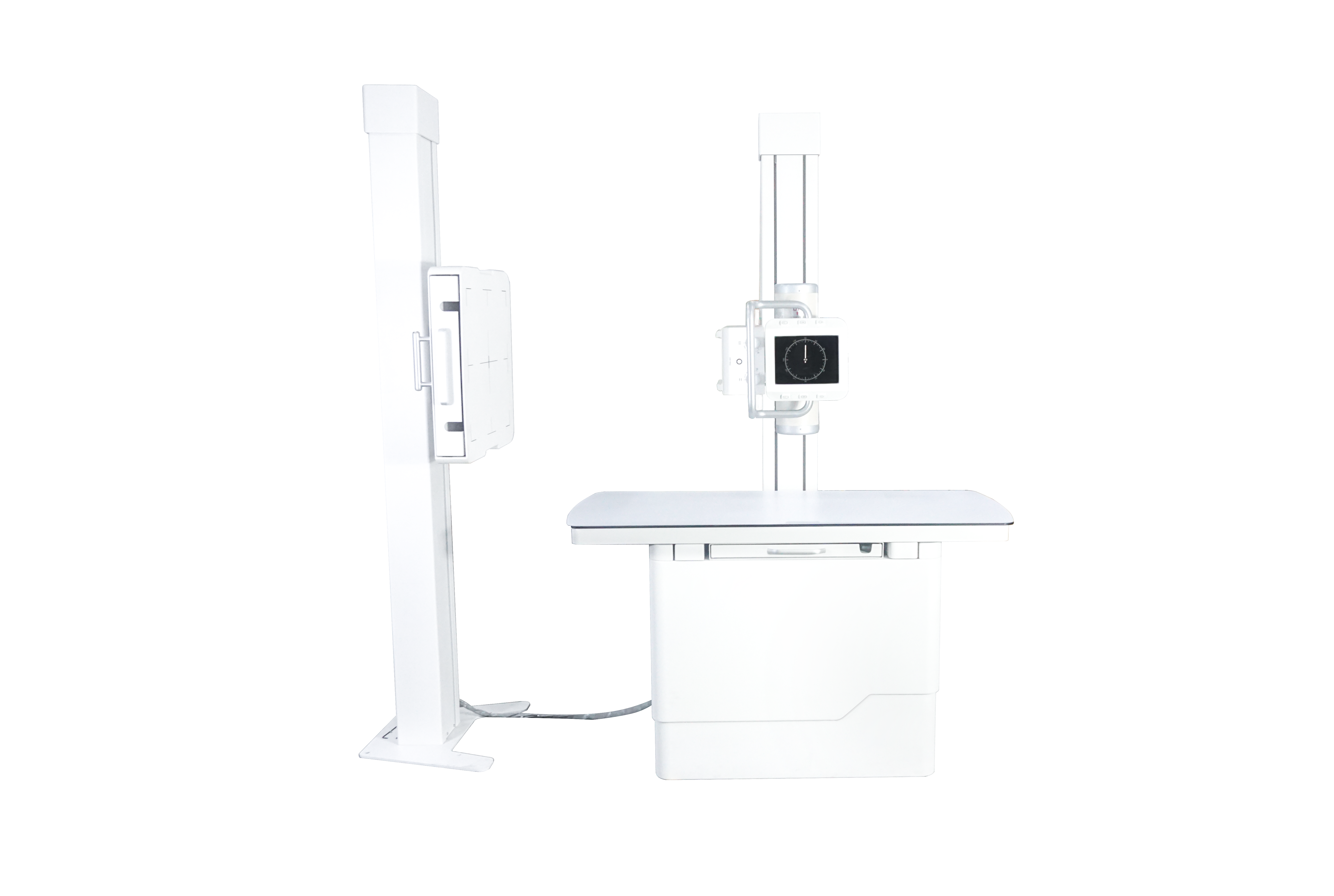

★ Horizontal and vertical shooting
★ Canon X-ray Tube
★ 17×17inch CSI Detector
★ 32KW, 400mA X-ray

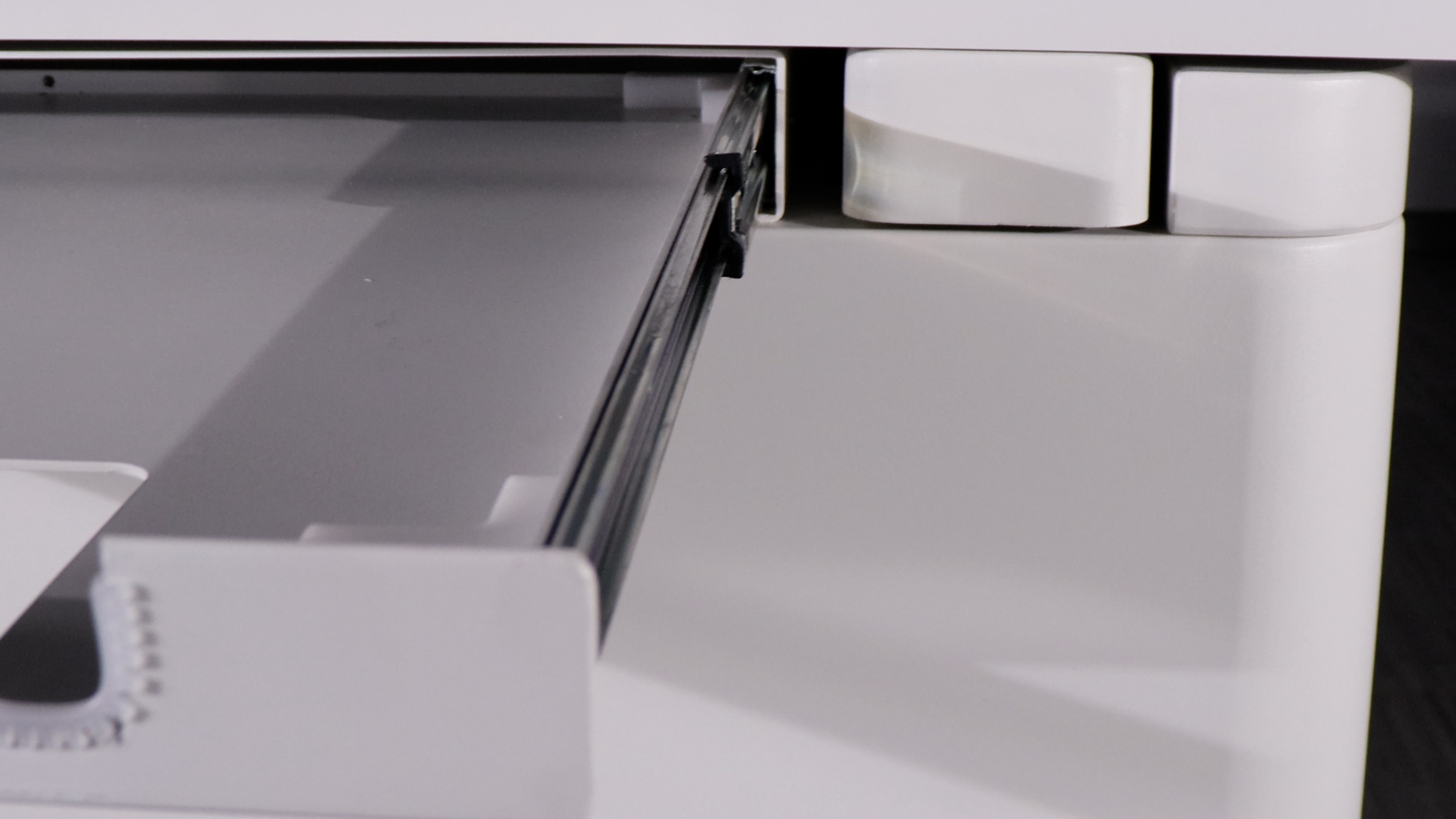

★ 4-way floating table
A New Generation of Professional Animal X-ray Imaging System (DR) Specially Designed for Veterinarians
Product Overview
English:
iVision-400 is a new generation of professional animal X-ray imaging system (DR), specially designed for veterinarians. It intelligently matches accurate and safe exposure parameter conditions according to the size of the pet, prevents operators from receiving more scattered radiation hazards, and quickly provides clear and accurate images. The perfect workflow and high quality make it popular among veterinarians and become the first choice for Vet DR.
Featuring industrial grade PC hardware, sealed design for dust-proof and hair-isolating, humanized intelligent design, one-key switch on/off, voice control exposure, body thickness visualization, high efficiency industrial capacitive touch screen, single-person operation at the bedside, cloud image sharing, multi-terminal diagnostic images available for both in-hospital and out-hospital mobile terminals.
Key Features
- Industrial Grade PC Hardware – Intel i7 CPU, 8G Memory, 128GB SSD + 1TB HDD (2TB optional)
- Sealed Dust-proof Design – Dust and hair isolation, adapts to complex environment of pet hospitals
- Humanized Intelligent Design – One-key power on/off, voice control exposure, body thickness visualization
- Industrial Capacitive Touch Screen – Efficient and sensitive, supports single-person bedside operation
- Cloud Image Function – Supports multi-terminal diagnosis on mobile terminals inside and outside the hospital
- Extra Thick Steel Body – High precision machining, medical grade spraying, anti-rust and anti-aging, easy after-sales service
- Three-door Rack Design – Modular circuit, easy maintenance
- Dual Screen Display – 21.5-inch industrial capacitive touch + 24-inch high-definition display
- Two-year Warranty – Free accessories and maintenance services provided during the warranty period
- Two Sets Radiation Protection Suit – Protect operator safety
Product Specifications
| Parameter Category | Item | Specifications |
| Machine Parameters | Weight | 350 KG |
| Dimensions | 212 cm × 140 cm × 60 cm | |
| Power Requirements | 110/220VAC ±10%, grounding wire not less than 4 square millimeters | |
| Installation Requirements | Minimum door width 85cm, Minimum room size 3m × 1.5m | |
| Flat Panel Detector | Scintillator | amorphous silicon a-Si cesium iodide CsI |
| Image Size / Pixel Matrix | 43×43cm (17×17in) / 3072×3072 | |
| Pixel Pitch | 139 μm | |
| A/D Conversion | 16 bit | |
| Spatial Resolution | 3.6 LP/mm | |
| X-ray Voltage Range | 40-150 KV | |
| Minimum Detectable Dose (RQA5) | 14 nGy | |
| Image Acquisition Time (Wired) | 1 second | |
| Data Interface | Gigabit Ethernet (LAN Cable) | |
| Trigger Mode | Lossless AED/AWC, Sync Trigger | |
| Detector Surface Load | 300 KG | |
| Operating Environment | 5-35ºC, 10-75% RH | |
| Water Tightness | IP54 | |
| X-ray Tube | Maximum Voltage | 125 KV |
| Focus Size | 1.0/2.0 mm | |
| Heat Capacity | 140k HU | |
| Anode Input Power | small focus 21KW / large focus 42.5KW | |
| High Voltage Generator | Input Power Voltage | 110/220VAC / 10A |
| Maximum Output Power | 32 KW | |
| KV Range | 40～125KV ±（1%+1KV） | |
| mA Range | 10～400MA ±（1%+1KV） | |
| Exposure Time | 0.001-6.3 s | |
| Animal X-ray Table | Table Size | 1400 × 600 mm |
| Table Surface Material | Phenolic board | |
| Horizontal Longitudinal Movement | 75±10 mm | |
| Horizontal Lateral Movement | 200±10 mm | |
| Load Capacity | 200 KG | |

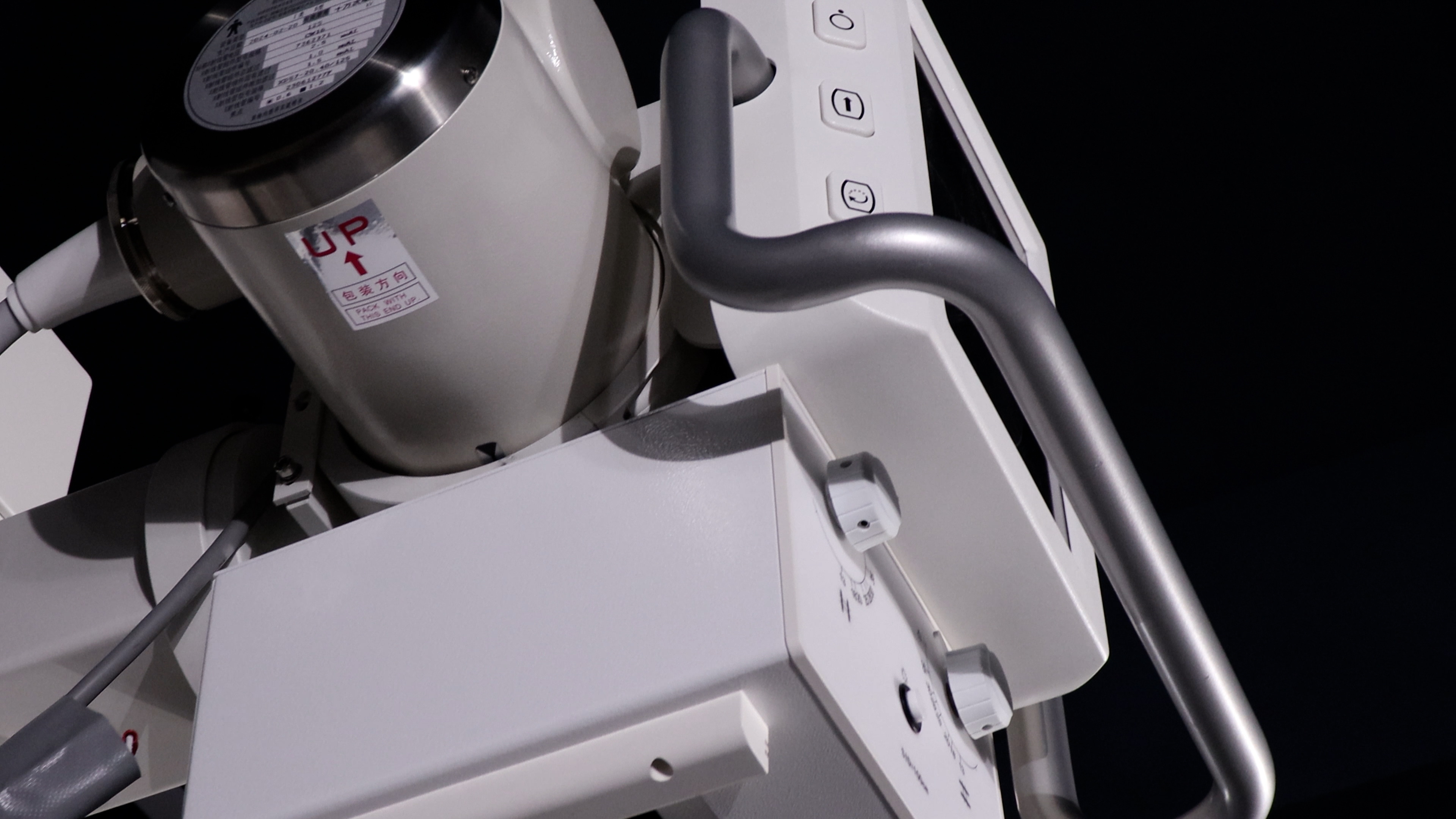

| Tube Movement | Up&Down / Rotate 90 degree | |
| Accessories | Collimator | built-in LED light source (automatically off after 30 seconds) |
| Exposure Controller | hand-switch, foot-switch | |
| Intelligent Module | voice control | |
| Radiation Protection Suit | 2 sets | |
| Software | Veterinary X-ray image acquisition and processing software | Included |
Packaging Information
| Packaging Method | Standard export wooden box packaging |
| Included Items | Main rack × 1, Flat panel detector × 1, X-ray tube × 1, High voltage generator × 1, Photography table × 1, Industrial PC control unit (with dual screen display) × 1, Accessories package × 1, Instruction manual × 1, Warranty card × 1 |
| Free Accessories | Two sets of radiation protection suits |
| Warranty Period | Two-year whole machine warranty, free accessories and maintenance services provided during the warranty period |
| Original Brand / Original Model | iVision / iVision-400 |
