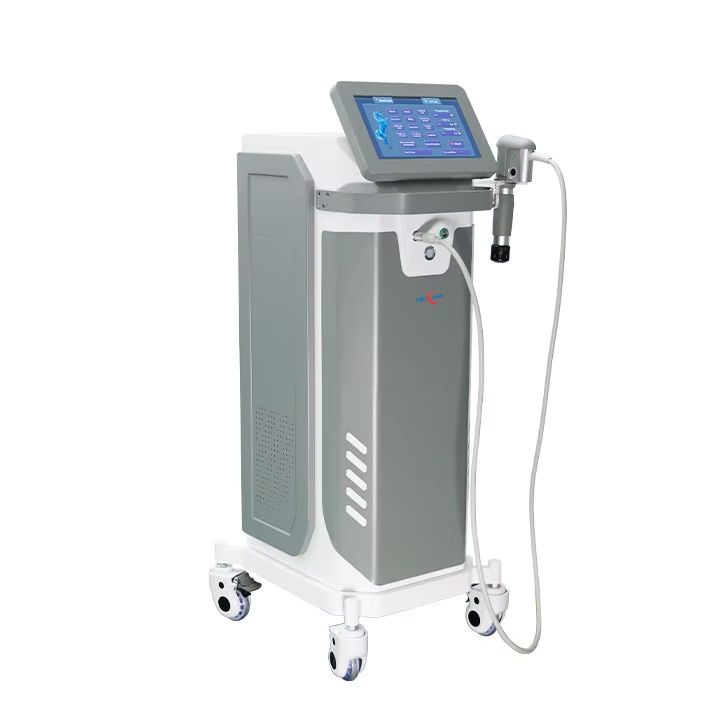

IWA-SWT20 High-Performance Mobile Veterinary Shockwave Therapy Station

Product Overview

IWA-SWT20 is a floor-standing veterinary shockwave therapy station — 0.5–10 bar / 1–21 hz, hd touchscreen with 12 preset treatment areas and 3d animal hologram, dual hepa filtration + dual-fan cooling, double-walled metal housing, silent casters and pullable drawers. Suited for equine musculoskeletal disorders — tendinopathy, sore back, suspensory desmitis, splint reabsorption, navicular syndrome, performance horse rehabilitation and pre-event conditioning.

Key Features

• Floor-standing mobile chassis — 105 cm working height, silent casters for quiet movement between treatment rooms.
• 0.5–10 Bar pressure / 1–21 Hz frequency — 0.5 Bar energy adjustment accuracy.
• 2 – 6 cm penetration depth — superficial to deep tissue coverage.

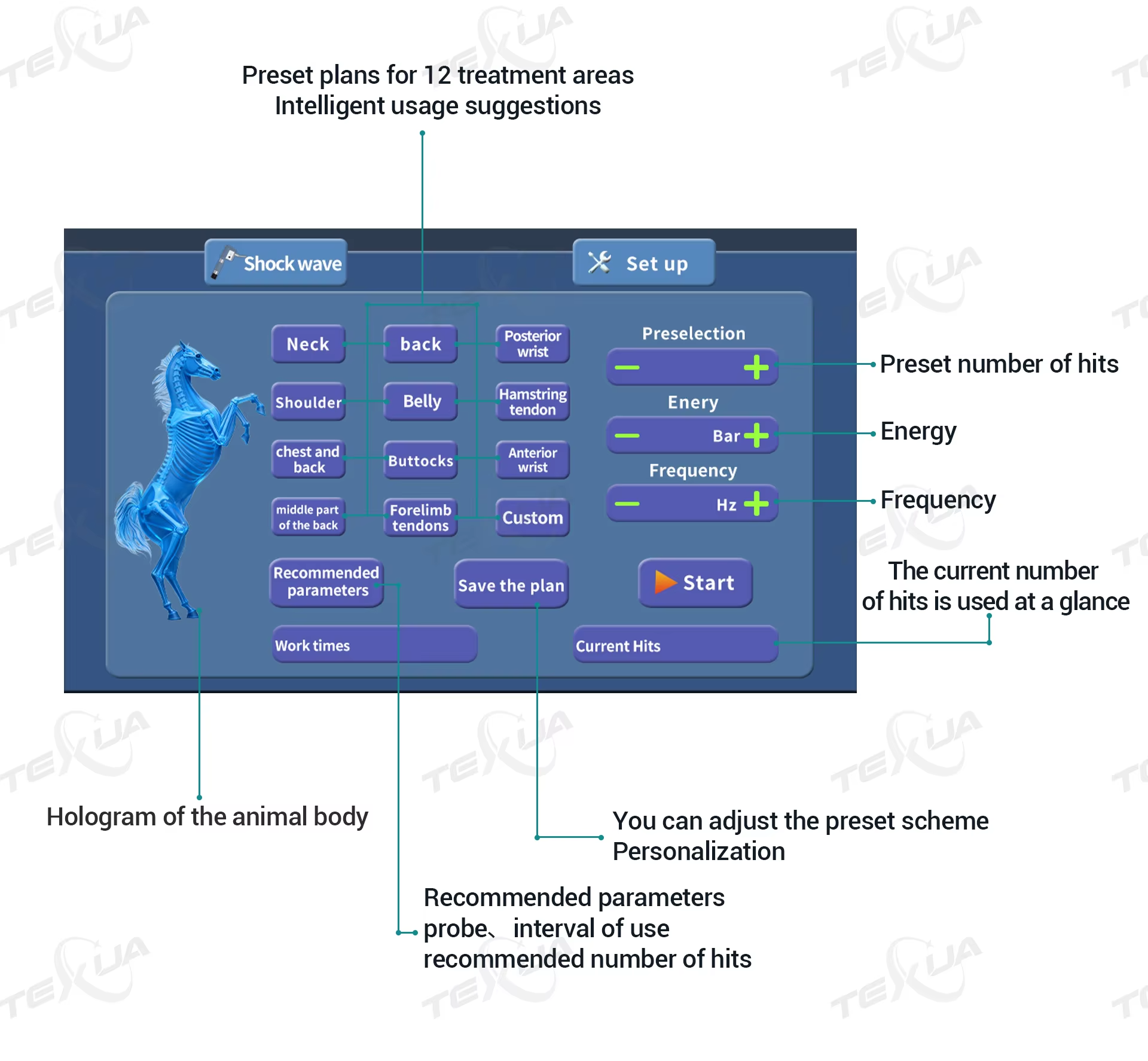

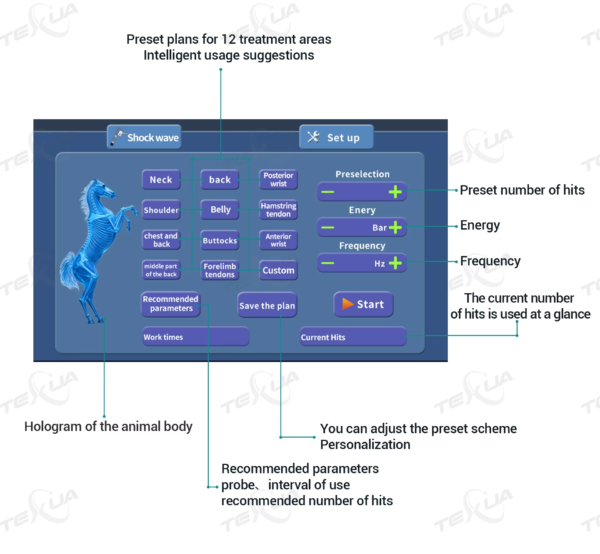

• HD touchscreen with 12 preset treatment areas — Neck / Shoulder / Chest and back / Middle part of back / Posterior wrist / Hamstring tendon / Belly / Buttocks / Anterior wrist / Forelimb tendon / Recommended parameters / Save the plan — with 3D animal hologram for visual site selection.
• Adjustable parameters per cycle — Preselection (preset number of hits), Energy, Bar, Frequency (Hz).
• Intelligent usage suggestions — recommended probe, treatment interval, and hit count per protocol.
• Seven interchangeable impact heads — flat / concave / convex tips in 6, 10, 15, 20, 25, and 30 mm calibers — let the operator match penetration depth and beam profile to the target tissue (tendon, muscle, fascia, periosteum).

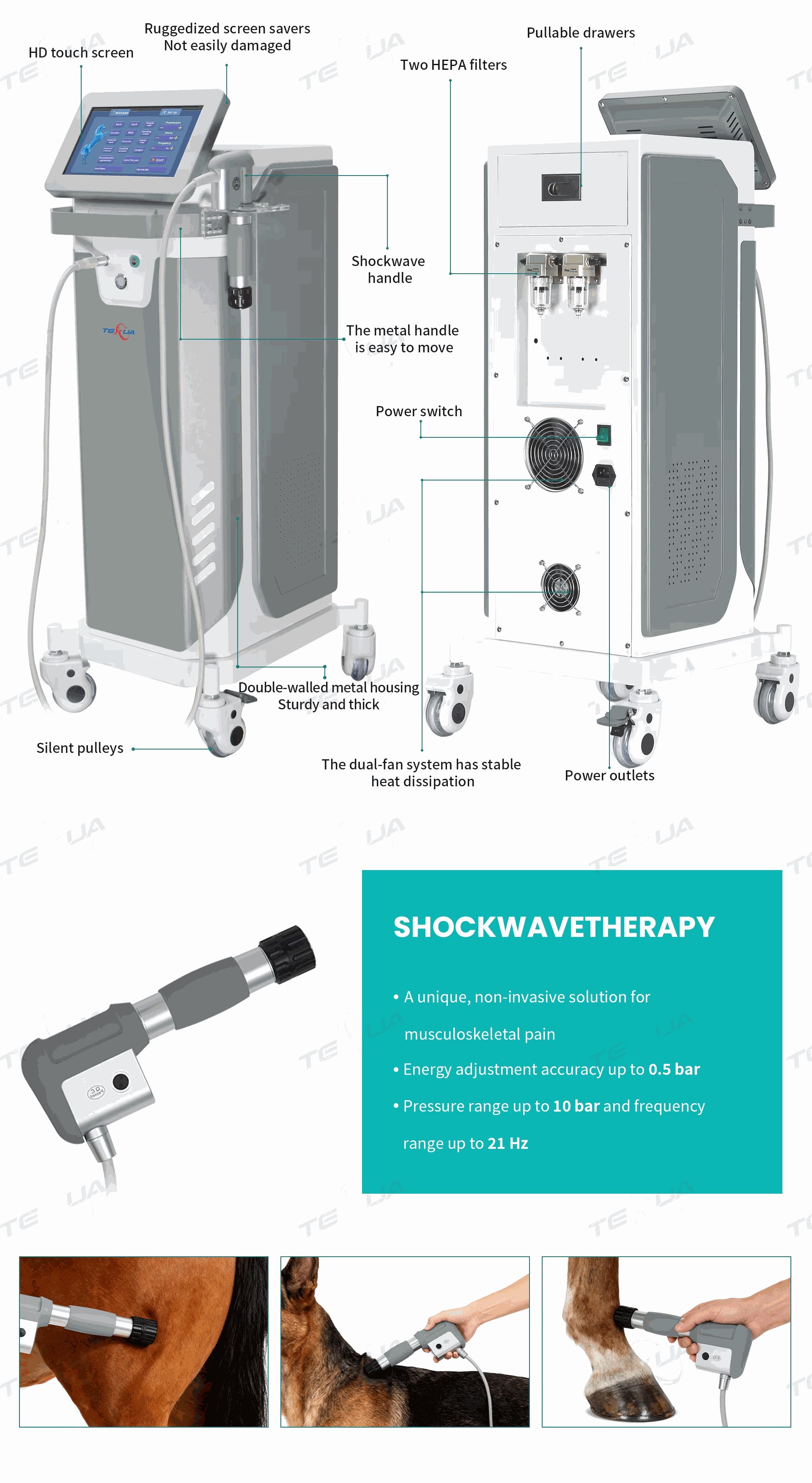

• Double-walled metal housing — sturdy, thick construction with ruggedized screen savers.
• Dual HEPA filtration + dual-fan cooling system — stable heat dissipation during high-throughput days.
• Pullable drawers for accessory storage and easy chairside access.
• Self-contained handle cable — strain-relieved, resistant to damage; metal handle is easy to move.
• Universal 110 V / 60 Hz or 220 V / 50 Hz mains.

Product Gallery

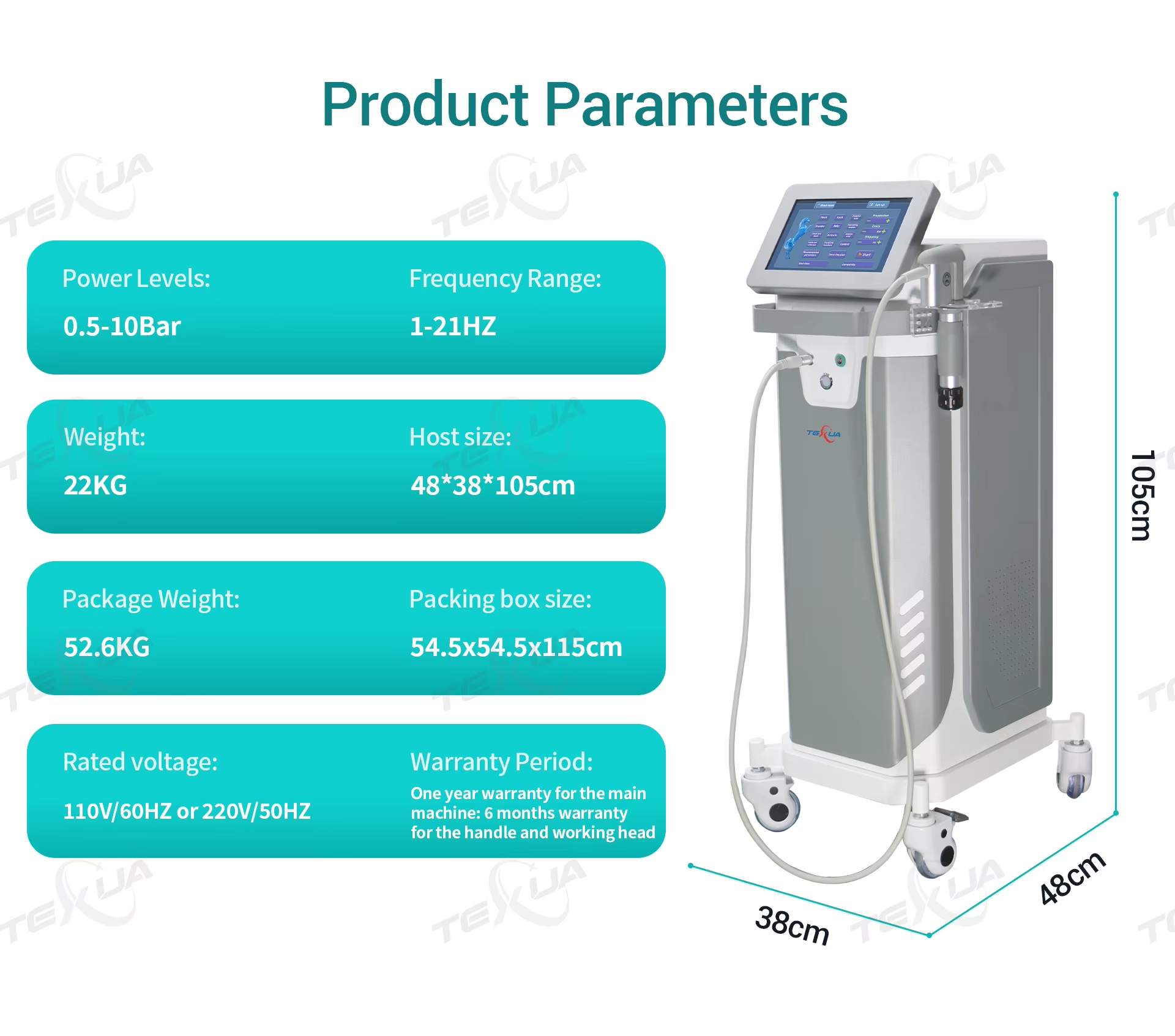

Technical Specifications

Clinical Applications

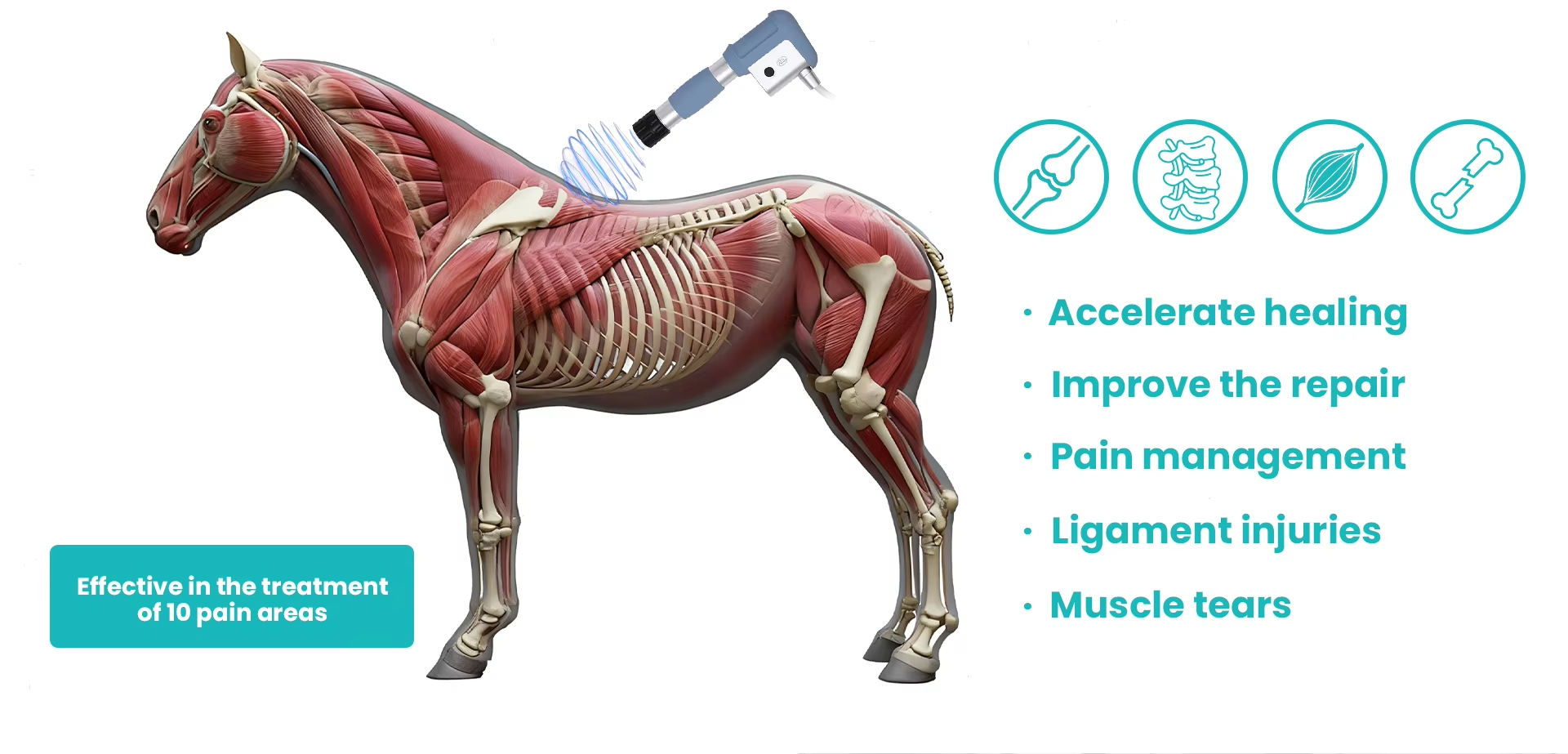

• Equine musculoskeletal disorders — tendinopathy, sore back, suspensory desmitis, splint reabsorption, navicular syndrome
• Performance horse rehabilitation and pre-event conditioning
• Companion animal rehabilitation in specialty veterinary hospitals (canine elbow / hip OA, post-orthopaedic recovery)
• Chronic tendinopathy and adhesion break-up cases requiring deep penetration
• High-throughput equine rehab and racetrack veterinary clinics
• Sport medicine workflow with cycle-by-cycle parameter logging and saved treatment plans

Workflow

Move the station into the treatment box on its silent casters. Open a pullable drawer to choose the appropriate impact head from the on-board accessory set. Power on — the HD touchscreen presents the 3D animal hologram and 12 preset site buttons. Tap the target area (e.g. Hamstring tendon); the system recalls the recommended Preselection (hit count), Energy, Bar, and Hz. Fine-tune via the on-screen +/− controls if needed and tap Start. The dual-fan cooling and dual HEPA filtration keep the unit at stable operating temperature across consecutive cases. Save the cycle as a treatment plan for protocol consistency on follow-up visits.

Package Contents

• 1 × IWA-SWT20 floor-standing shockwave therapy station
• 1 × Metal-handled shockwave handpiece with self-contained cable
• 7 × Interchangeable impact heads (flat / concave / convex, 6 / 10 / 15 / 20 / 25 / 30 mm)

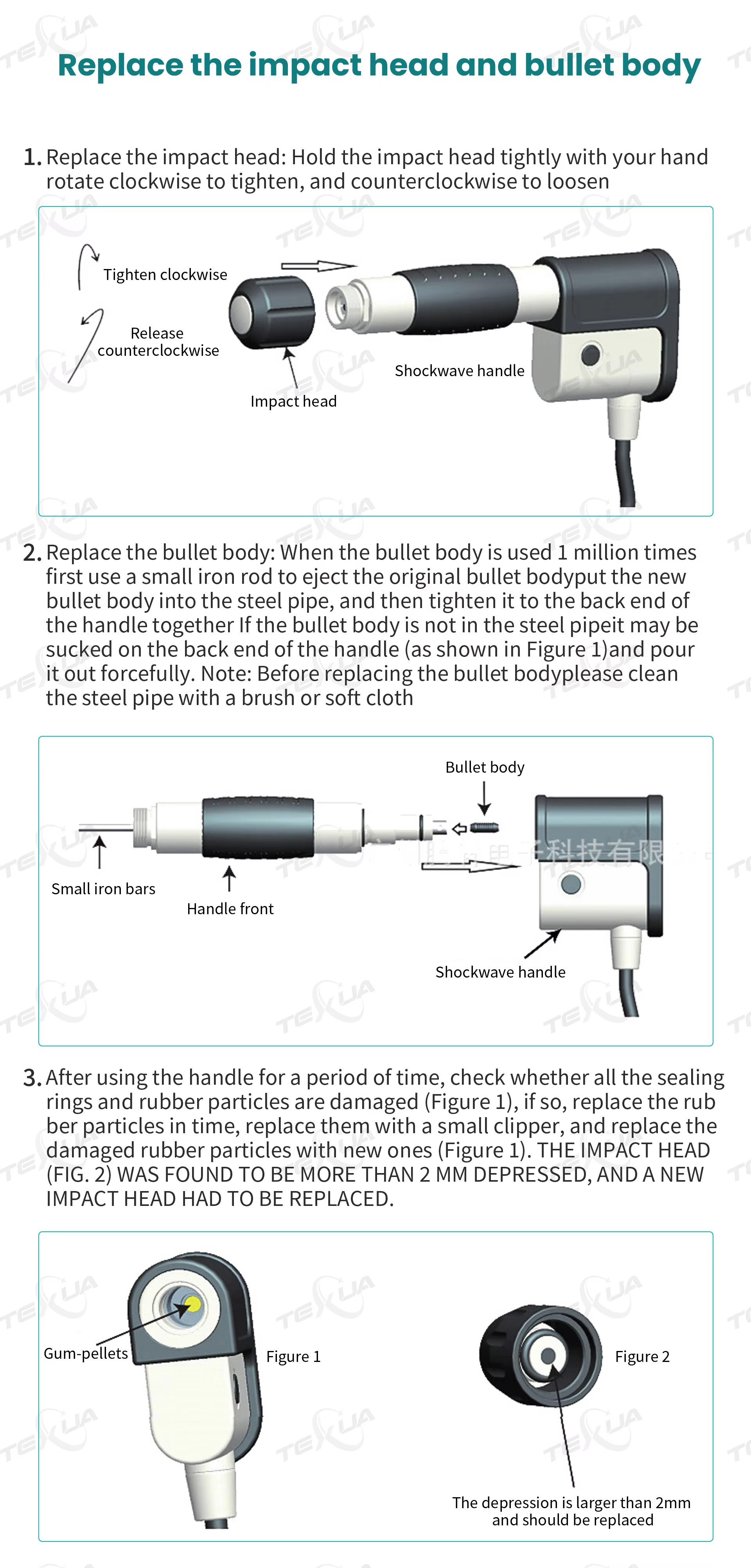

• Spare gum pellets and sealing rings
• Dual HEPA filter set (factory-installed)
• 1 × Power cord (110 V or 220 V regional)
• 1 × Ultrasound coupling gel
• 1 × User manual
• 1 × Quality certificate

Why Choose IWA-SWT20

• Workflow efficiency — 12 preset areas + saveable treatment plans + on-board accessory drawers eliminate setup time between cases.
• Clinical accuracy — 0.5 Bar adjustment resolution and 2–6 cm penetration range deliver consistent dosing across superficial to deep targets.
• Hospital readiness — double-walled metal housing, dual HEPA filtration, dual-fan cooling, and silent casters meet the durability and noise standards of high-throughput equine and specialty rehab hospitals.

Warranty & Support

1-year warranty on the main machine; 6-month warranty on the handpiece and impact heads. Spare parts and authorised in-region service available through IWA Medical / LumaVet.
