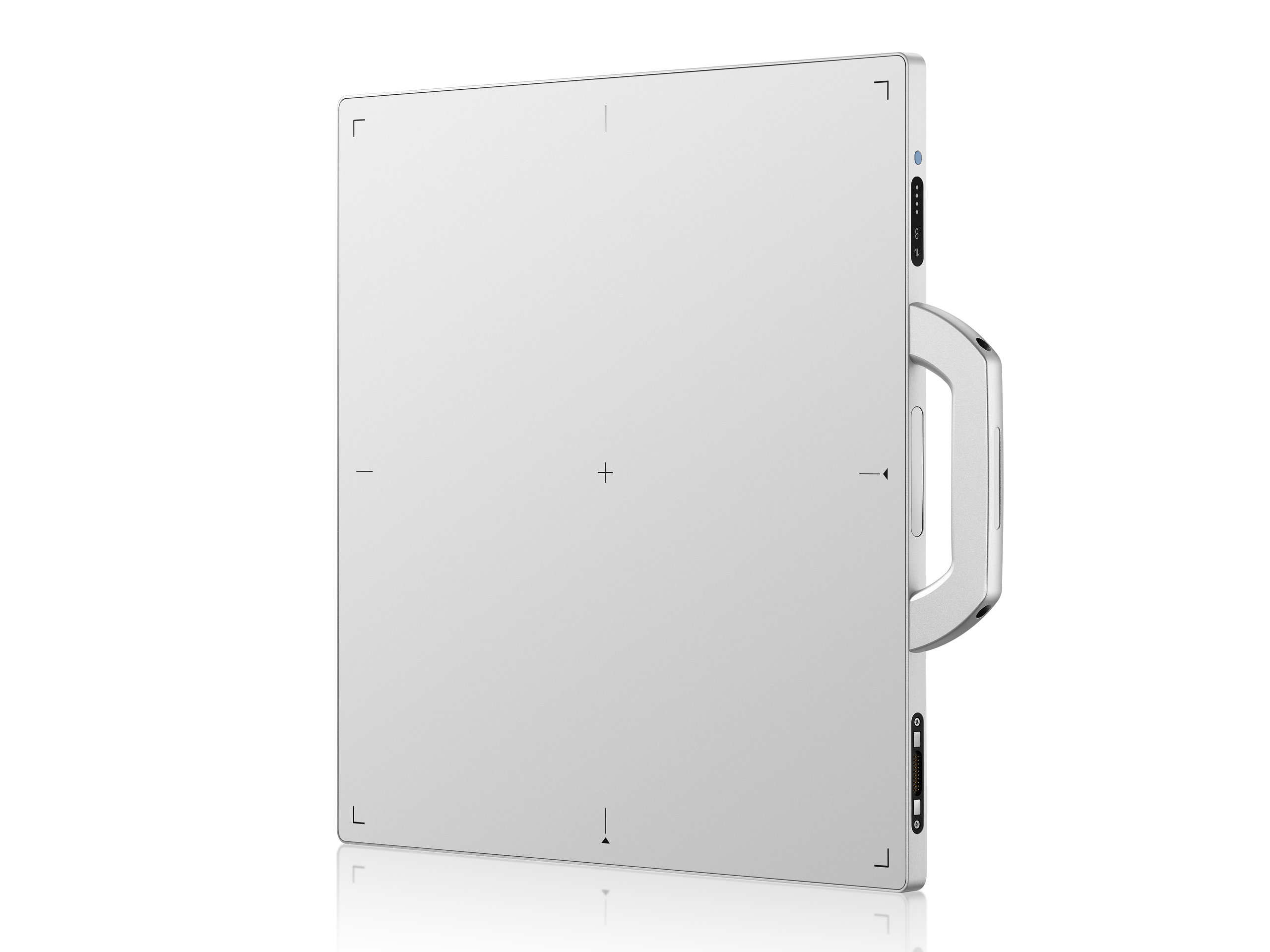

Wireless 17×17 inch flat-panel detector — 9.4 MP CsI a-Si sensor, 139 µm pixel pitch, 3.5 LP/mm spatial resolution, IP52 housing, dual-band Wi-Fi, 4 h battery autonomy.
Product Overview
IWA-FP15 is a wireless 17×17 inch flat-panel detector — 9.4 mp csi a-si sensor, 139 µm pixel pitch, 3.5 lp/mm spatial resolution, ip52 housing, dual-band wi-fi, 4 h battery autonomy. The detector is suited for veterinary general radiography (thoracic, abdominal, skeletal), wireless retrofit of existing iso 4090 17×17 inch wall-stand and table cassette systems.
Key Features
- 17×17 inch active imaging area (43 × 43 cm) with 3072 × 3072 pixel matrix at 139 µm pitch.
- 3.5 LP/mm spatial resolution with a-Si TFT photodiode + CsI scintillator.
- 16-bit A/D conversion for full dynamic range.
- X-ray voltage range 40 – 150 kV.
- Trigger modes: AED / Prep / Software.
- Dual-band 2.4 / 5 GHz Wi-Fi (IEEE 802.11).
- 4 h battery autonomy with 6000 mAh / 44.4 Wh / 7.4 V Li-ion battery, 3 h recharge.
- IP52 ingress protection.
- 460 × 460 × 15.5 mm housing, 4.5 kg — fits ISO 4090 wall-stand and table cassette trays.
Product Gallery
Visual Evidence

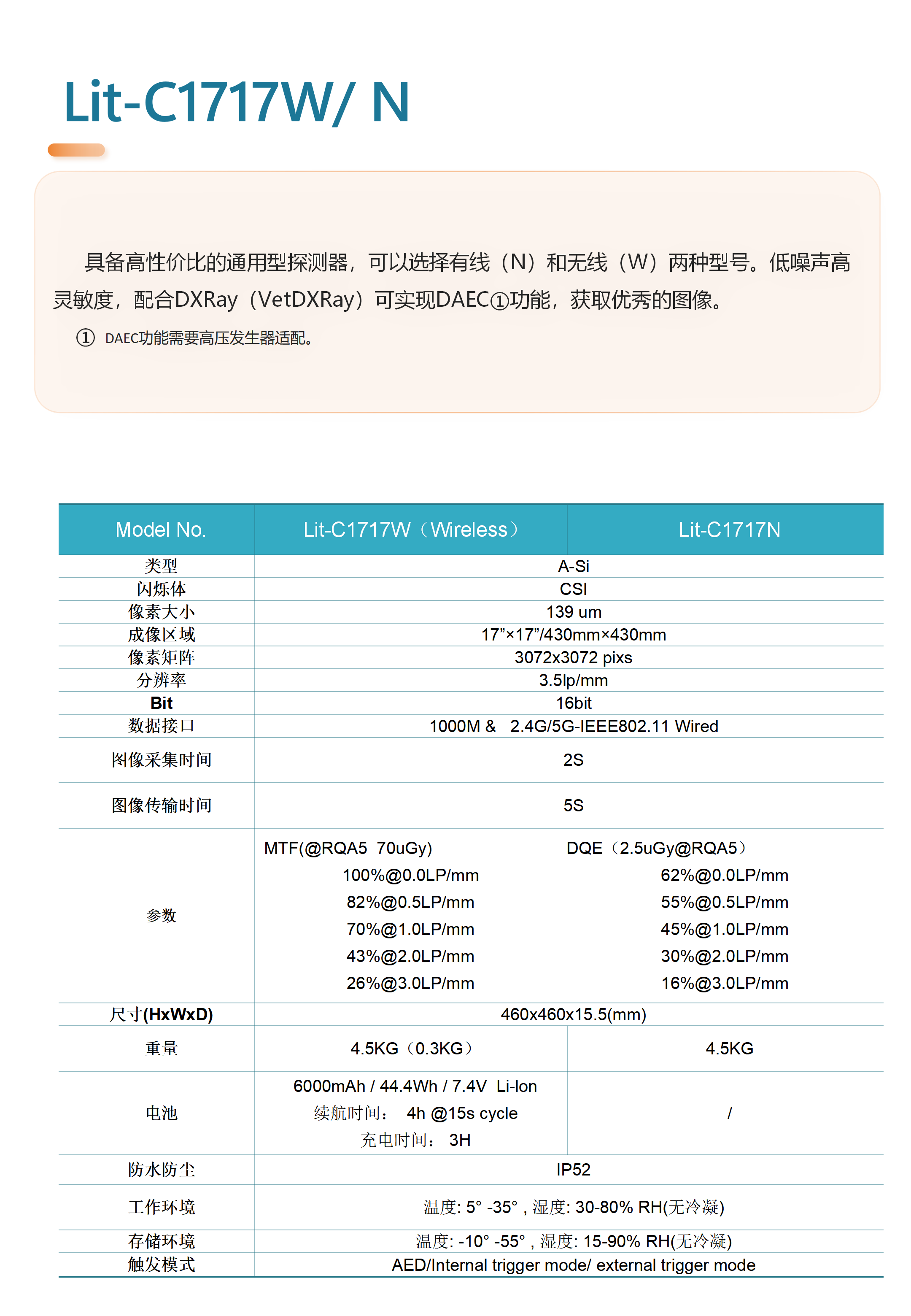

Technical Specifications
| Detector technology | Amorphous silicon (a-Si) TFT |
| Scintillator | CsI |
| Active imaging area | 17 × 17 inch (43 × 43 cm) |
| Pixel matrix | 3072 × 3072 |
| Pixel pitch | 139 µm |
| Spatial resolution | 3.5 LP/mm |
| A/D conversion | 16 bit |
| X-ray voltage range | 40 – 150 kV |
| Trigger modes | AED / Prep / Software |
| Image acquisition time | 2 s |
| Data interface | Dual-band 2.4 / 5 GHz Wi-Fi (IEEE 802.11) |
| Battery | 6000 mAh / 44.4 Wh / 7.4 V Li-ion |
| Battery autonomy | 4 h @ 15 s cycle |
| Battery recharge | 3 h |
| Ingress protection | IP52 |
| Dimensions | 460 × 460 × 15.5 mm |
| Weight | 4.5 kg |
| Operating temperature | 5 – 35 °C |
| Operating humidity | 30 – 80 % RH (non-condensing) |
| Storage temperature | -10 – 55 °C |
| Storage humidity | 5 – 75 % RH (non-condensing) |
Clinical Applications
- Veterinary general radiography (thoracic, abdominal, skeletal)
- Wireless retrofit of existing ISO 4090 17×17 inch wall-stand and table cassette systems
- Equine and large-animal full-body imaging
- Mobile / ambulatory DR workflow
Workflow & Installation

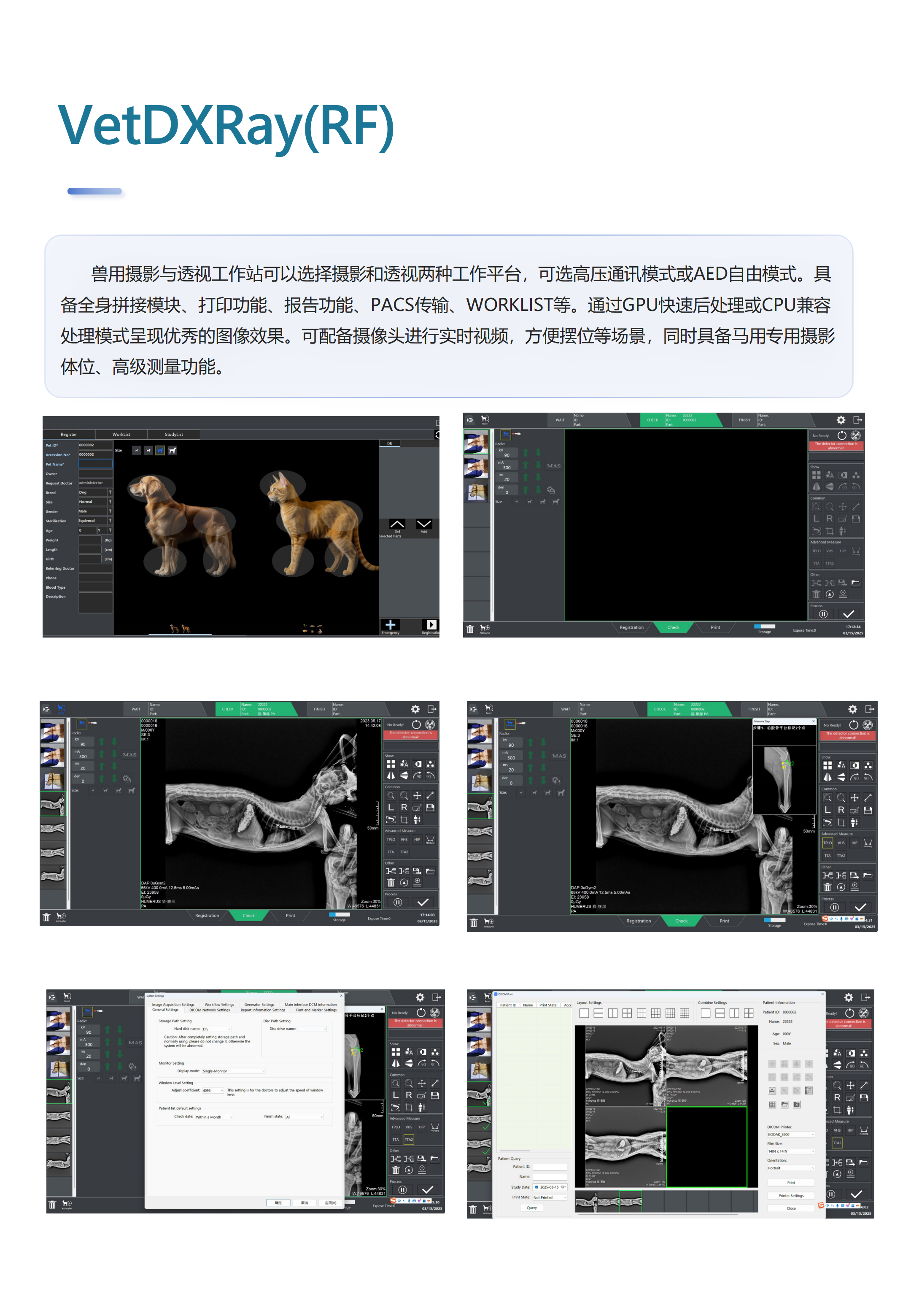

The detector pairs with the host PC over dual-band Wi-Fi (2.4 / 5 GHz). Acquisition software (e.g. VetDXRay) supports general radiography workflow, high-voltage sync, AED auto-trigger, full-body stitching, PACS transfer, and WORKLIST. GPU-accelerated processing maintains throughput on standard clinic PCs.
Package Contents
- 1 × IWA-FP15 wireless flat-panel detector
- 1 × Internal Li-ion battery (~4 h autonomy)
- 1 × Battery charger / dock
- 1 × Power adapter
- 1 × Acquisition software
- 1 × User manual
- 1 × Quality certificate
Why Choose IWA-FP15
- Workflow efficiency — dual-band Wi-Fi removes tether cables for full-body equine and large-canine imaging.
- Clinical accuracy — 3.5 LP/mm resolution with 16-bit dynamic range yields diagnostic-grade DR images.
- Practice economics — ISO 4090 standard form factor enables drop-in retrofit of existing CR cassette systems.
Warranty & Support
Manufacturer warranty per supply agreement. Spare parts and authorised in-region service available through IWA Medical / LumaVet.
FAQ
Q: Is this a static or dynamic detector?
Static. The detector is designed for single-frame radiographic exposures (not fluoroscopy or dynamic imaging).
Q: What X-ray generators is it compatible with?
Any conventional X-ray generator. The detector supports AED (Auto Exposure Detection) for use without hard-wired sync, plus software-trigger workflow.
Q: How long does the battery last?
Approximately 4 hours per charge. The detector ships with a charger / dock for clinic use.
Q: Does it support DICOM?
The acquisition software outputs raw and processed images; DICOM 3.0 integration is typically provided by the host DR workstation software (e.g. iVision / iVet / iPet workstations) or by your existing PACS gateway.
