Reading a 30-gram body takes 100-micron eyes — iPet-400Pro Exotic Edition, the exotic-specialty configuration of the Pro platform.
Product Overview
Imaging a 35-gram budgerigar and imaging a 35-kilogram retriever are two different disciplines. Small-patient skeletal structures are hair-fine — beyond what a standard detector’s pixel density resolves — and forceful restraint can itself cause injury. The iPet-400Pro Exotic Edition answers both problems: the iLume 4343Pro high-resolution flat panel brings 100 µm pixel pitch (standard panels: 139 µm), turning small-patient bone detail from visible into readable; and the 90°-rotating gantry lets rabbits, birds, and reptiles be imaged in standing or natural posture, keeping restraint stress down. An exotic positioning accessory kit and a species exposure-parameter library (rabbit / avian / reptile / guinea pig) ship with the system.
Key Features
- iLume 4343Pro flat panel — 100 µm pixel pitch (139 µm standard); a step change in small-patient skeletal detail.
- Standing / natural-posture projection reduces restraint stress in exotic patients.
- Exotic-species exposure library + positioning accessory kit — rabbit, avian, reptile, and guinea-pig presets ready at switch-on.
- Full general-practice capability retained — routine canine and feline radiography identical to the standard Pro.
- DICOM worklist — order straight to DR — exam orders arrive at the workstation automatically; no double data entry.
Product Gallery

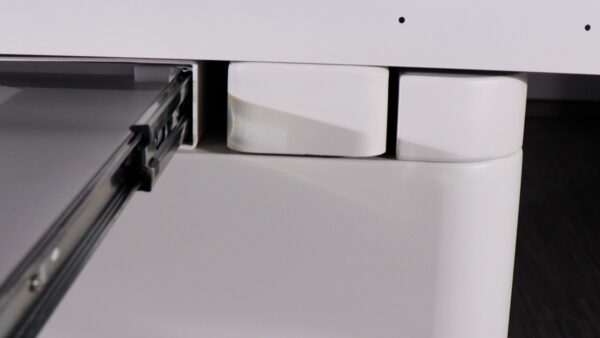

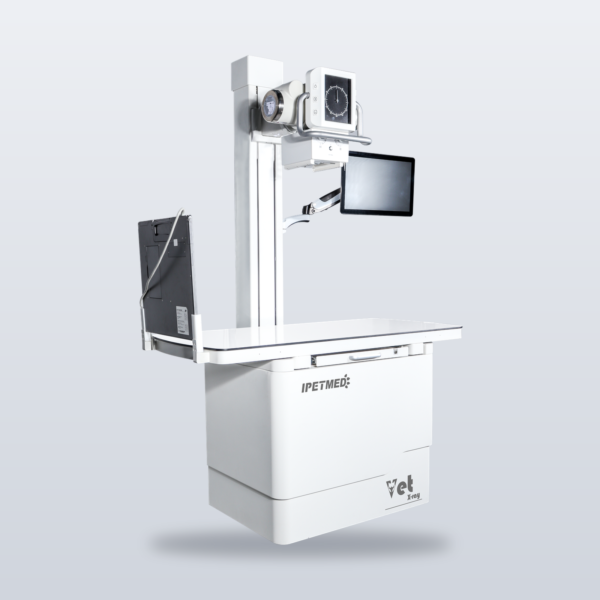

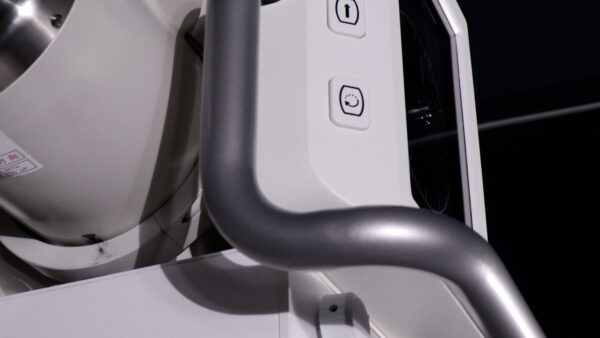

Pro-platform gantry, tube head and controls, four-way floating patient table, detector drawer rail, and acquisition workstation.
Platform Specifications (Pro Platform)
| High-voltage generator | 32 kW high-frequency, single phase 110/220 VAC |
| kV / mA range | 40 – 150 kV / 10 – 400 mA |
| Exposure time | 1 – 10000 ms |
| X-ray tube | Canon E7240X (max 125 kV, 0.6 / 1.2 mm focal spots, anode input 15 / 30 kW) |
| Gantry | Elevating, rotating column: adjustable SID / 90° tube rotation for horizontal beam / standing views |
| Positioning | Recumbent / standing / natural posture, single-operator workflow |
| Patient table | 1400 × 700 mm, phenolic resin, float X 75 ±10 mm / Y 200 ±10 mm |
| Collimator | LED light source, 1.0 mm Al filtration at 75 kV |
| Workstation | Industrial PC + 21.5″ touchscreen + 23.8″ monitor |
| Power supply | Single-phase mains, no three-phase supply required |
Flat-Panel Detector (iLume 4343Pro High-Resolution)
| Pixel pitch | 100 µm (standard panels: 139 µm) |
| Active area | 43 × 43 cm |
Full detector specifications will follow the official technical datasheet; contact IWA for the current parameter sheet.
Software Configuration
| Acquisition workstation | In-house software with Caravaggio tone engine and body-size automatic exposure |
| AI imaging assistant | Draft report generation; veterinarian reviews and signs off |
| Pro software package | AI lesion overlay display |
| Exotic-specialty package | Rabbit / avian / reptile / guinea-pig exposure library + positioning protocols |
| DICOM / cloud | DICOM 3.0 Store, Print, Worklist; cloud image storage supported |
Dedicated Accessories
- Exotic positioning accessory kit — supports standing and natural-posture projection, reducing restraint stress.
Clinical Applications
- Specialty imaging of small-bodied patients: rabbit, avian, reptile, and guinea pig
- Standing and natural-posture projection for low-stress examination
- Full general-practice capability: routine canine and feline radiography across all body sizes
Clinical Imaging Samples
Exotic-species radiographs from the iPet DR imaging chain. Matched-exposure 100 µm comparison studies are in progress; contact IWA for reference images.
Workflow & Installation
Single-phase mains power. The elevating, rotating gantry switches the same room between tabletop and standing workflows without re-installation. Engineer-led installation, calibration, and operator training included.
Package Contents
- 32 kW high-frequency generator + control box
- X-ray tube assembly (Canon E7240X) + high-voltage cables
- iLume 4343Pro high-resolution flat-panel detector (43 × 43 cm) + adapter
- Exotic positioning accessory kit
- LED collimator
- Elevating, rotating gantry + four-way floating patient table (1400 × 700 mm)
- Acquisition workstation: 23.8″ display, 21.5″ touchscreen, PC, software dongle
- V-shape positioning set (1 large + 1 small)
- Lead protection set: gown, hat, scarf, glasses, gloves
- Foot switch, remote control, network cable
Downloads
Why Choose the Exotic Edition
- Detail resolution — 100 µm pixel pitch turns hair-fine small-patient skeletal detail from visible into readable.
- Animal welfare — standing and natural-posture projection with the positioning kit lowers restraint stress and restraint-injury risk.
- Specialty from day one — the species exposure library works at switch-on; no protocol building from scratch.
Warranty & Support
Two-year warranty on hardware and software. Engineer-led on-site installation, calibration, and training included.
FAQ
Q: How does the Exotic Edition differ from the standard Pro?
Three points: the iLume 4343Pro high-resolution panel (100 µm pixel pitch vs 139 µm), the exotic positioning accessory kit, and the exotic-specialty software package (rabbit / avian / reptile / guinea-pig exposure library and positioning protocols).
Q: Can a 30-gram bird produce a readable radiograph?
That is what the Exotic Edition is configured for: 100 µm pixel density resolves hair-fine small-patient skeletal structures, and the species library sets exposure by body size.
Q: Is forceful restraint always required?
The gantry supports standing and natural-posture projection; combined with the positioning kit, most studies can be completed at low stress. Restraint plans should still follow species behaviour.
Q: Can it image canine and feline patients too?
Yes. The Exotic Edition retains full general-practice capability, identical to the standard Pro for routine canine and feline radiography.
Q: Where are the full detector specifications?
The iLume 4343Pro technical datasheet is being finalised; contact IWA for the current parameter sheet.
