That Instant Inside the Tube:
What Happens After Electrons Hit the Target

Why does the machine say “please wait”? Why is the tube a consumable? What exactly do kV and mA each control? It all starts at the instant electrons strike the target.

4 min read2026-08-22IWA Medical engineering team

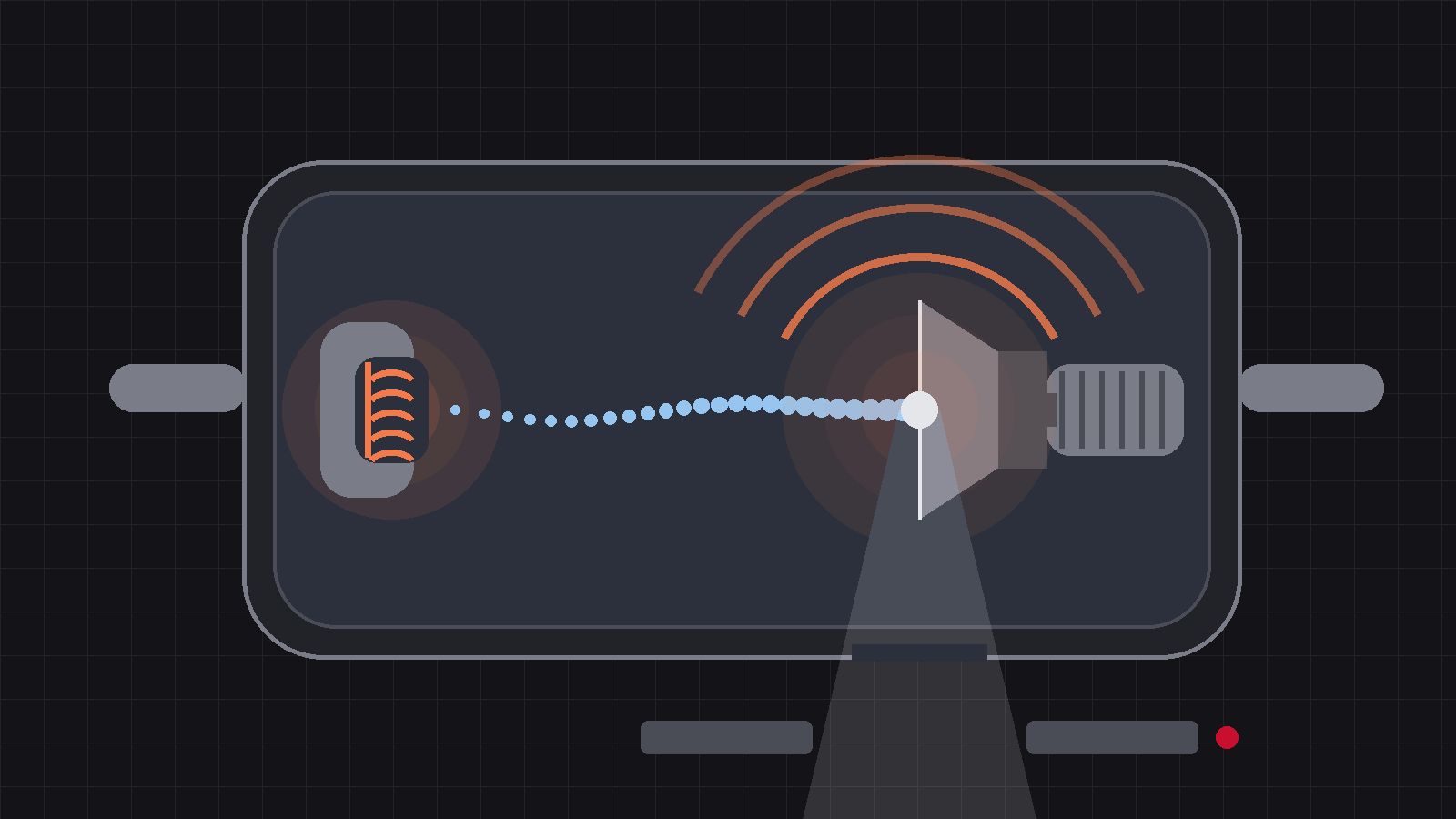

Illustration of an X-ray tube in section: filament releasing electrons, the beam striking a rotating anode, heat spreading upward, X-rays leaving through the window — Illustration · Inside the tube: electrons leave the filament, hit the target, heat goes up, X-rays go down

What happens inside the tube in the instant you press the hand switch? It sounds like a physics lecture, but knowing it explains three things you meet every working day: why the machine tells you to wait, why the tube is a consumable, and why kV and mA each control one thing and cannot be mixed up.

01There are only two things inside the tube: a filament and a target

An X-ray tube is an evacuated envelope — glass or metal — containing just two things: a filament and a target. Press the hand switch and three events follow within a few thousandths of a second.

Step 1 · mA

The filament glows and releases electrons

Current heats the filament until electrons “boil off” its surface and gather as a cloud around it. The hotter the filament, the more electrons.

Tube current mA= how many electrons per second

Step 2 · kV

High voltage drives them into the target

Tens of thousands of volts across filament and target accelerate the electrons hard. Higher voltage, faster electrons, heavier impact.

Tube voltage kV= energy at impactsets how “hard” the beam is

Step 3: electrons hit the target and X-rays appear — but only a trace

The target is usually tungsten: hard and heat-resistant. On impact, the electrons’ energy splits two ways: more than 99% becomes heat, less than 1% becomes X-rays. That trace leaves through the tube window, passes the filter that removes useless soft radiation, then the collimator that limits the field — and only then is it the beam that reaches the animal.

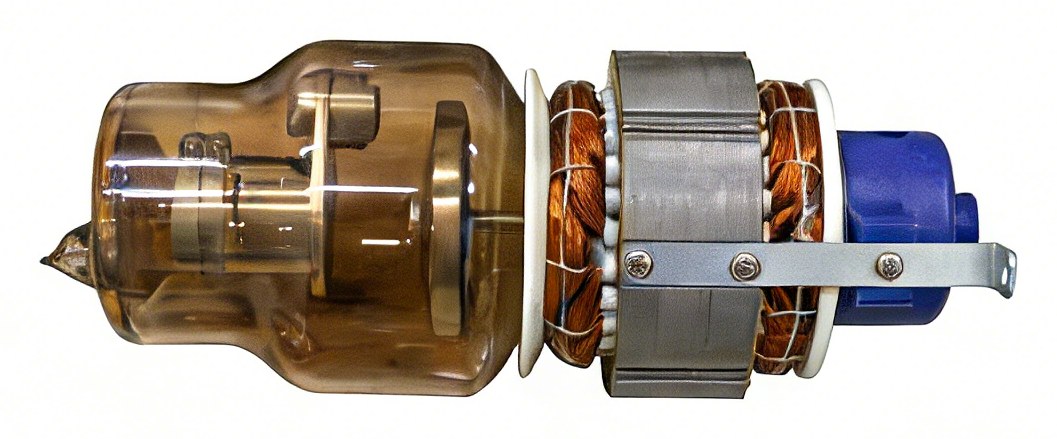

Photograph of an X-ray tube insert: filament and rotating anode disc visible inside the glass envelope, stator windings on the right — The tube insert with its housing removed: inside the glass envelope are the very filament and target described above — the disc in the middle is the rotating anode, and the copper windings on the right are the stator that spins it. Because the disc turns, the electrons never keep landing on the same spot

Inside the tube: electrons out (mA), accelerated (kV), striking the target — heat goes up, X-rays go down

02Put plainly: an X-ray tube is a heater

The counter-intuitive part

99% of its output is heat; the X-rays are a by-product

You read that correctly. What we pay for is the 1%, yet almost all the energy ends up as heat piled onto the target. That is why much of a tube’s design is about getting rid of heat: the anode rotates (that whirr at start-up is the rotor) so the impact point is spread around a whole track, and insulating oil and the housing carry the heat away. Once you accept this, most of the machine’s “moods” start to make sense.

1%or less

The share of electron energy that actually becomes X-rays; the rest is heat. This single fact explains both the waiting prompt during rapid sequences and the finite life of the tube.

03With those three steps, four everyday things make sense

Why rapid exposures trigger “please wait”

Because 99% of the energy becomes heat, all of it on the target. Continuous exposures — especially large animals at high mAs — raise the target temperature fast. The machine keeps a heat-capacity account and makes you wait once the limit is reached. That is not a fault; it is protection. Forcing exposures is burning the tube.

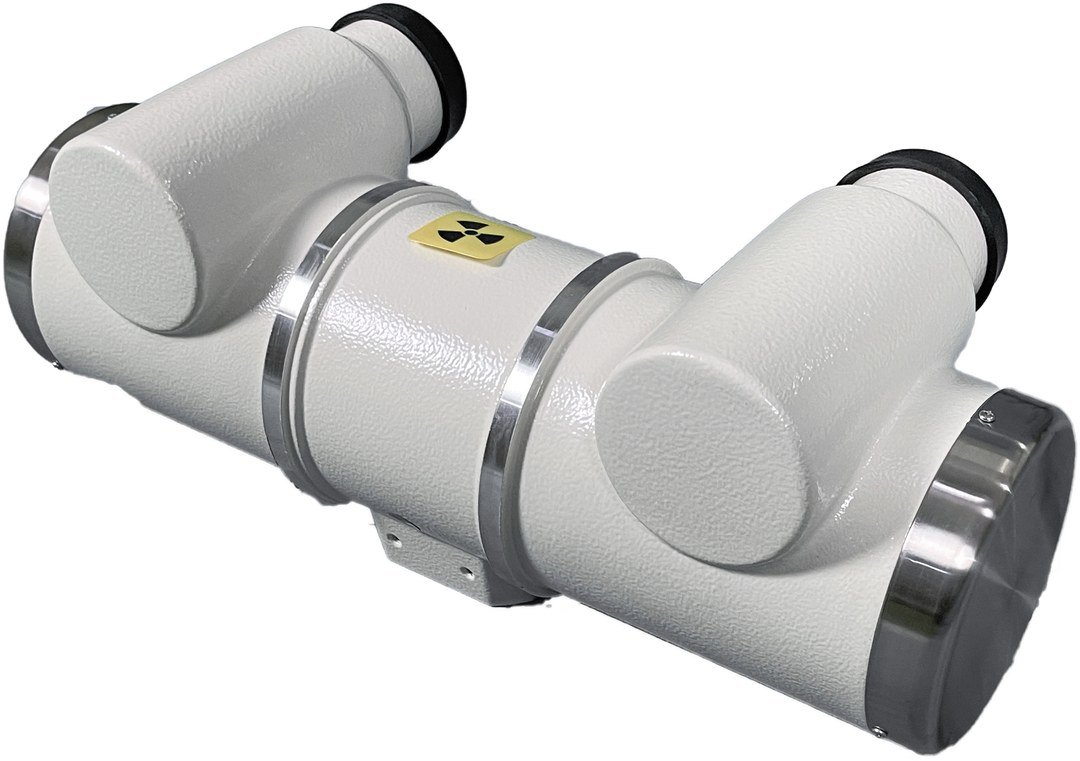

Photograph of the tube assembly in its housing: white shell, yellow radiation symbol and high-voltage sockets at both ends — The same tube inside its housing: the shell is filled with insulating oil that both insulates and carries heat away from the target. The yellow symbol marks it as a radiation source, and X-rays leave through the window only. This is the part you actually see on the machine

Why the tube needs warming up

A cold target that suddenly takes a large load can crack. Warm-up exposures raise its temperature gradually — the same reason you do not pour boiling water into a cold glass.

Why the tube is a consumable

Every heating cycle evaporates a little filament; every impact roughens the focal track. After some years the filament fails and the target surface pits. Like a tyre, it has a service life: the harder it works, the sooner it is replaced.

Why there is a large and a small focal spot

The small area where electrons land is the focal spot. A small spot gives sharper images (less geometric blur); a large spot takes more heat and suits large animals and high output.

That size is not arbitrary: a tube normally carries two filaments of different sizes — light the fine one and you get the small focal spot, the thick one and you get the large one. So pressing “large/small focus” on the console really means switching filaments, which takes us straight back to Step 1. Choosing between them is the trade-off between sharpness and heat capacity.

None of the three costs anything, and together they add life to the tube.

One line to remember

The tube is 99% heater, 1% X-ray lamp.
Let it rest.

Source：“Under 1% of electron energy becomes X-rays, the rest becomes heat” is the standard result of radiation physics in the diagnostic kV range.
